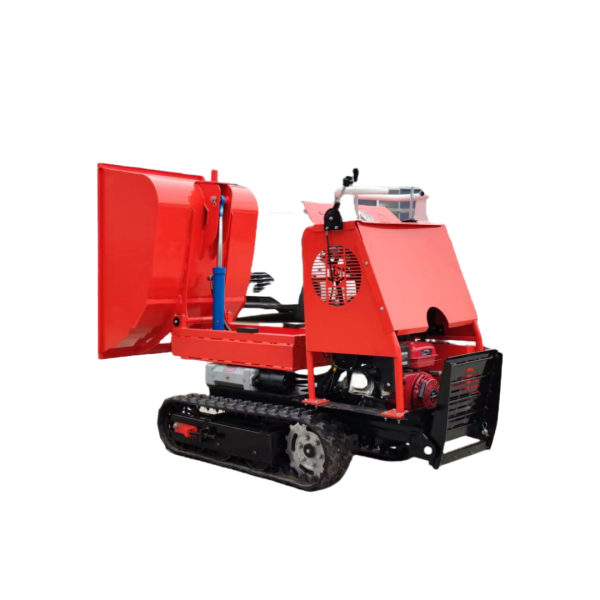

500 KG Rotation Hopper Full Hydraulic Mini Dumper
Category:
Self-loading mini dumper-full hydraulic
Chat with us now for a quick response.
Get expert sales advice within 12 hours.
Keyword:
500 KG Rotation Hopper Full Hydraulic Mini Dumper
PRODUCT DETAILS
Mini Dumper
Product Details:
Product Features:

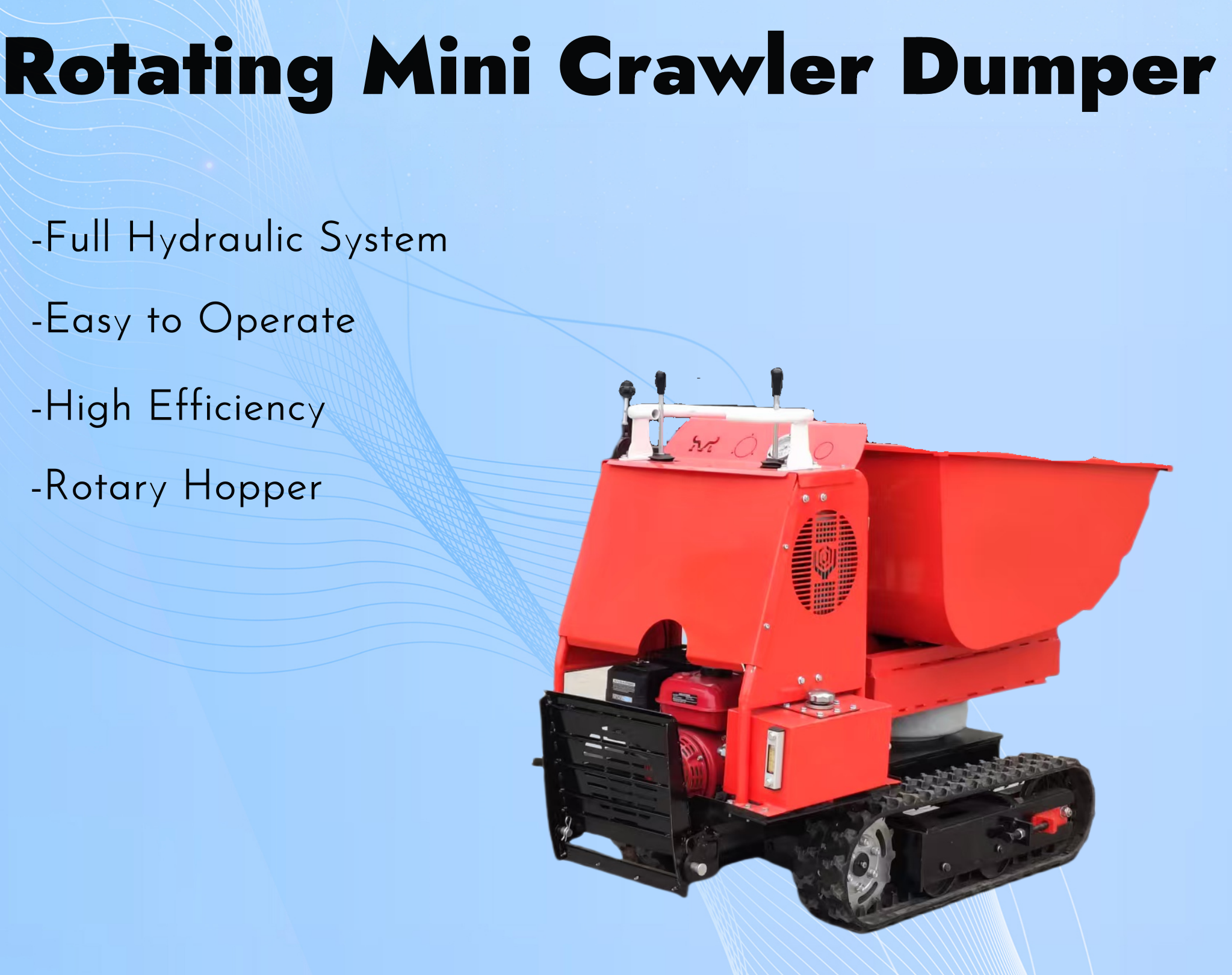

1.270°Rotating Hopper.
The material can be unloaded in any direction(sideways, rearward, diagonally)without adjusting the vehicle's orientation. This is especially suitable for narrow spaces (such as greenhouses, orchard aisles, and building gaps), saving time on turning around.
2. Full Hydraulic Drive System.
The hydraulic system is highly enclosed, dustproof, and waterproof, making it suitable for harsh environments with mud and dust.

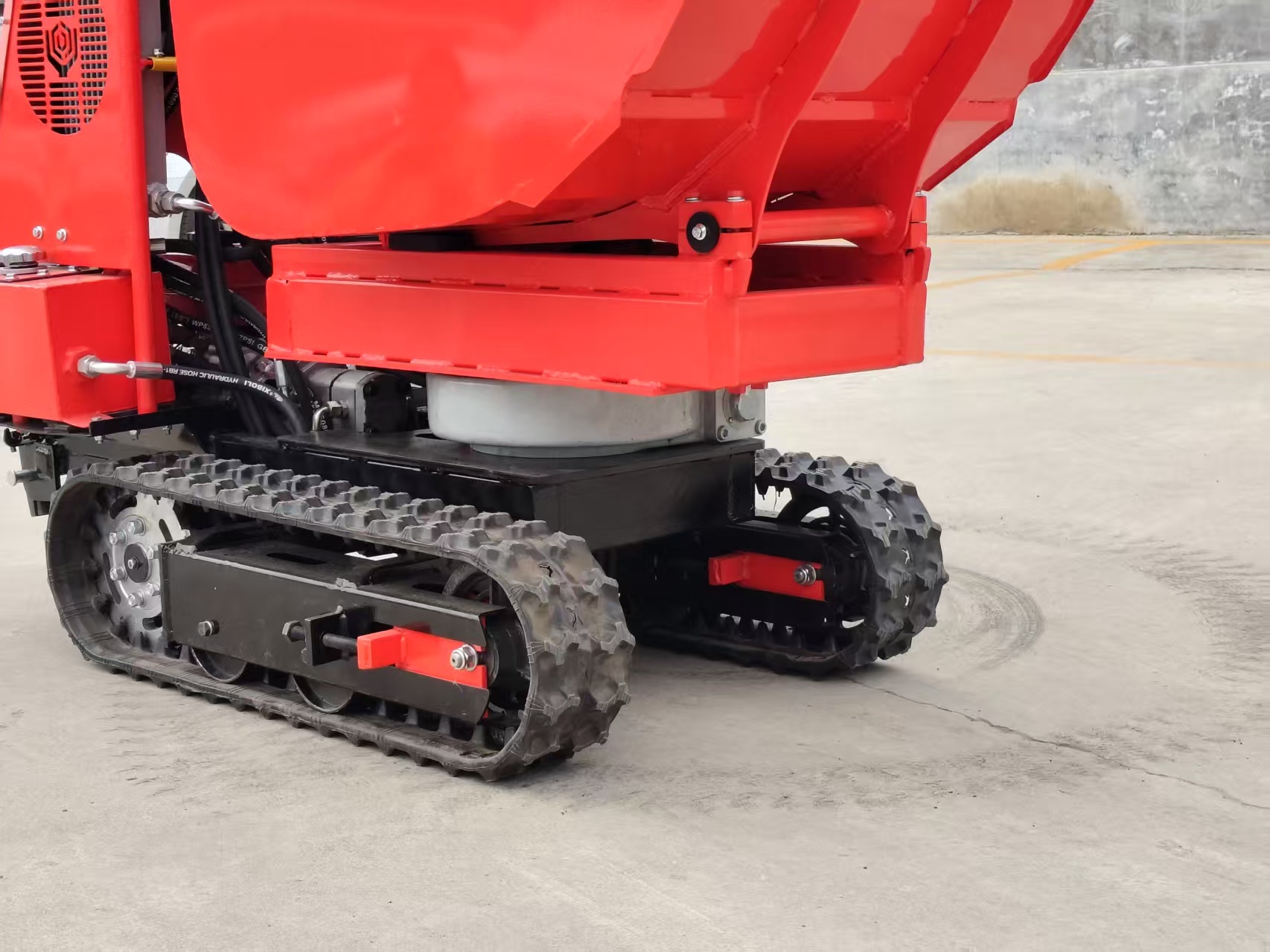

3. Tracked Travel Mechanism
Low Ground Pressure: Distributes weight evenly. allowing easy passage over soft ground(wetlands, sand, snow)and preventing the vehicle from sinking, unlike wheeled vehicles.
Product Specification:
Driving ways | Stand-on |
Drive ways | Hydraulic |
Steering ways | Hydraulic control valve*2(One control Two) |
Rubber cawler size | 150*60*38 |
Operating weight(Load capacity) | 1150kg(500kg) |

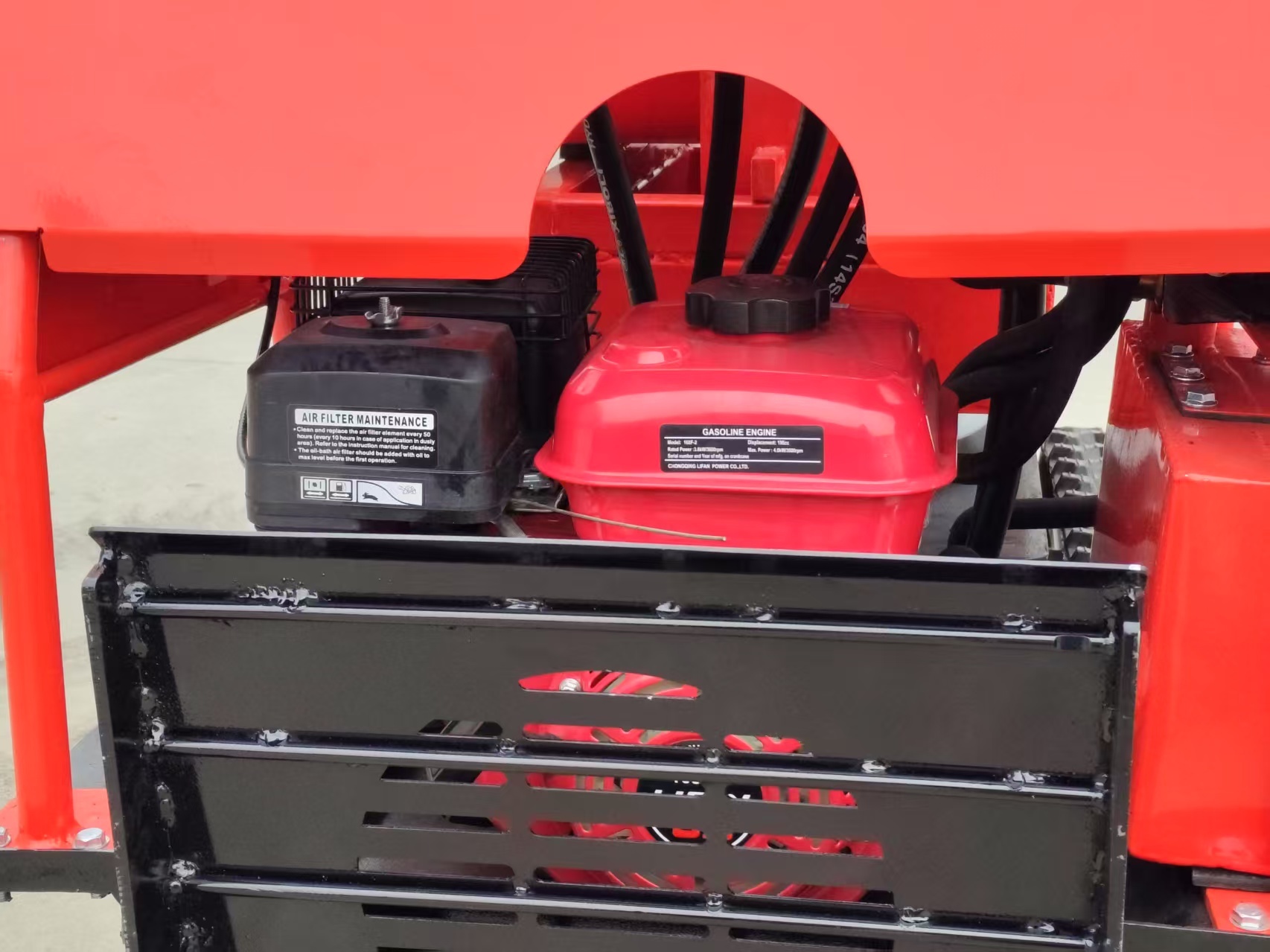

Engine | Briggs & Stratton 6.5HP 3600rmp |
Engine starting ways | Hand-start |
Carriage type and capacity | U type/280L |
Unloading ways | Hydraulic |
Hopper rotation angle | 0-270° |

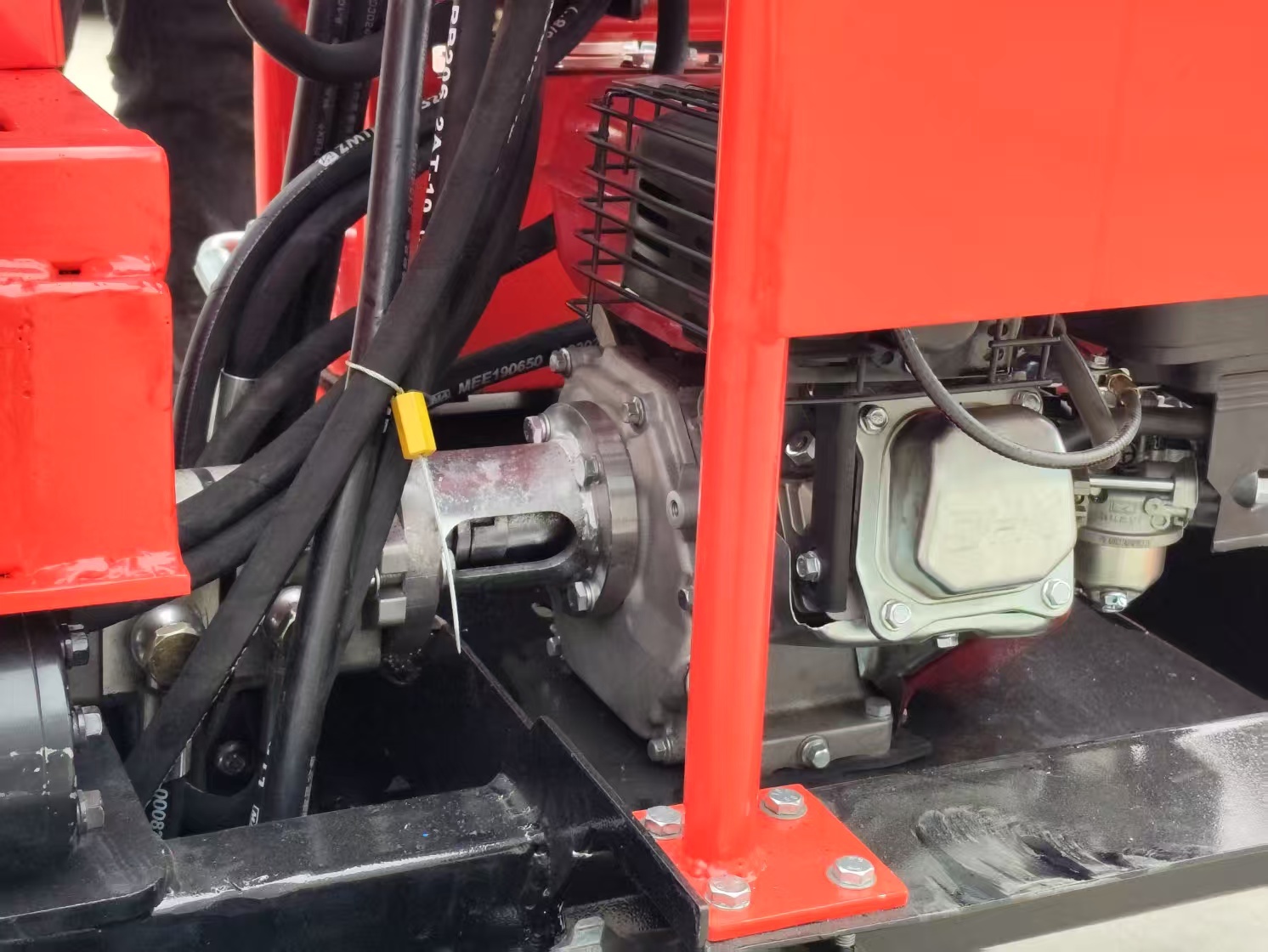

Hydraulic dump | Series gear pump(4ccX2) |
Hydraulic motor | BYMS hydraulic motor |
Working pressure | Max. 180bar |
Flow rate | 8.0L |
Motor torque | 645Nm 180bar |
Walking speed | 0-3.5km |
Climbing ability | 30° |
Wading depth | 300mm |
Ground Clearance | 100mm |
Overall size | 2080*850*1260mm |
Package size | 1650*880*1350mm |
