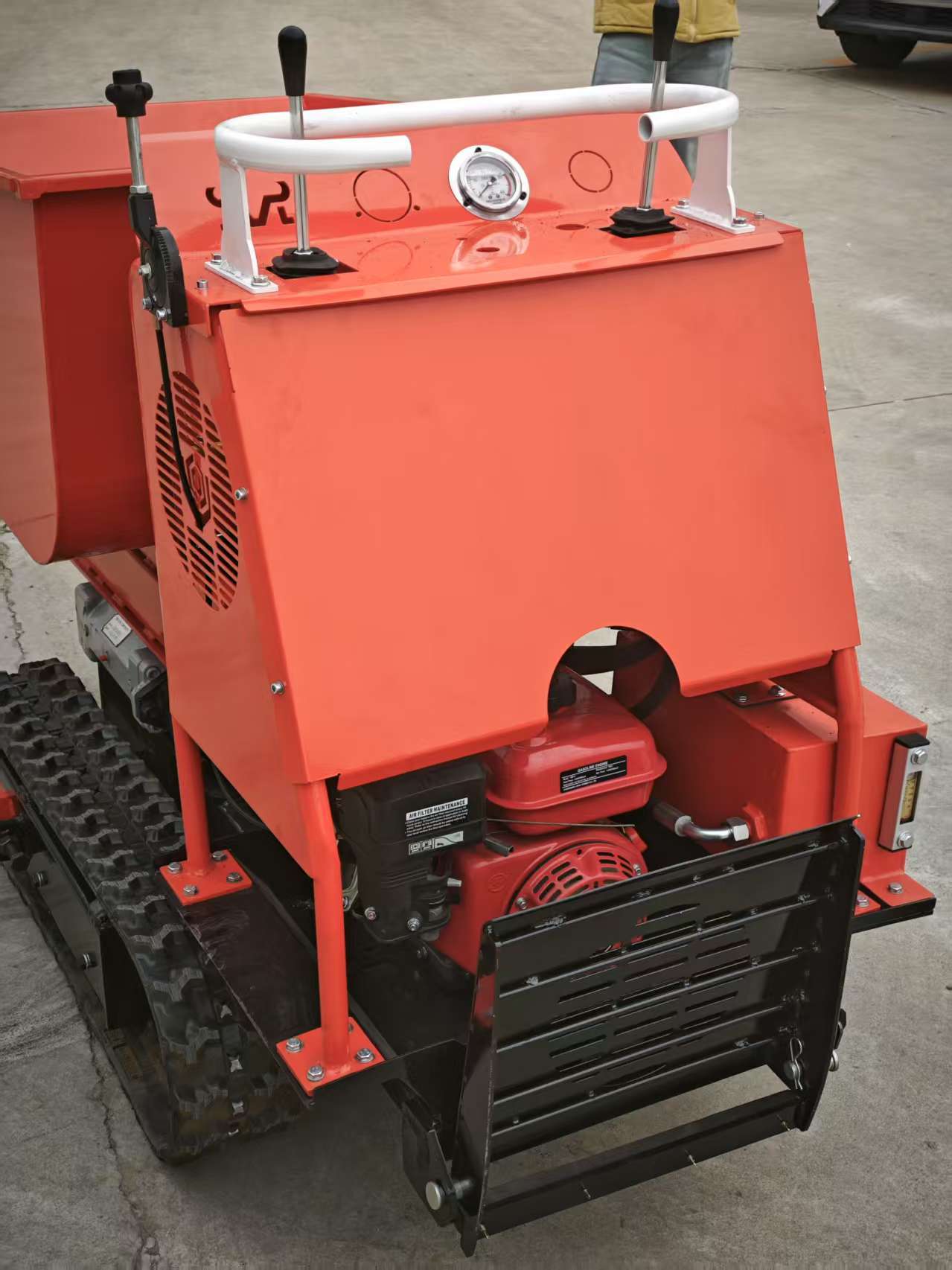

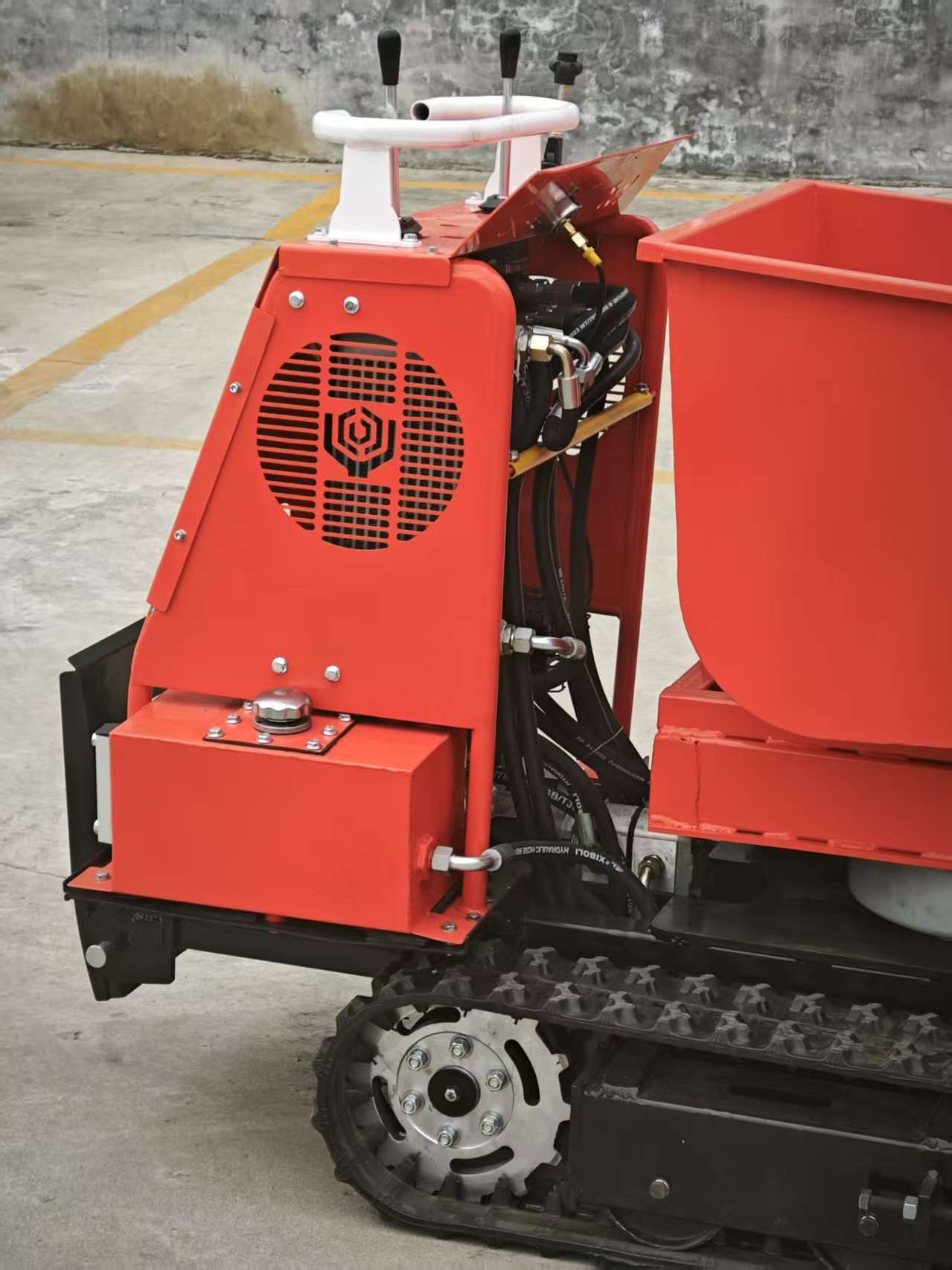

Hot Selling Full Hydraulic Rotary Hopper Mini Dumper for Garden or Farm Use

1.Engine: Gasoline engine or diesel engine
2.Capacity of capacity: 0.5T，0.8T，1T and 1.5T
3.Gear:Full hydraulic system
4.Loading and unloading by hydraulic, save manpower



All terrain tracked tipper, tracked tipper replaces the traditional wheeled walking with rubber tracks, which has large carrying capacity, strong grip and low noise, at the same time, the tracked walking device increases the contact area between the machine and the ground without harming the farmland and the road, and it has good driving and passing performance, it can adapt to complex and difficult road conditions such as rice paddies, swamps and muddy roads. The specific size can be customized according to your needs. Strong load capacity, strong climbing ability, simple operation and easy maintenance.

Specifications and models

OBSQX500

Driving mode

Station driving

Steering method

Hydraulic drive walking

Steering mode

Hydraulic control valve x 2, one control two

Track specifications

150*60*38

Operational Quality

1150Kg

Load capacity

500Kg

Engine models And power

Bailitong 6.5 horsepower EPA 3600rpm

Engine start mode

Hand pulled start

Engine fuel tank

3.6L

Car type And volume

U-shaped/280L

Unloading method

Hydraulic dump

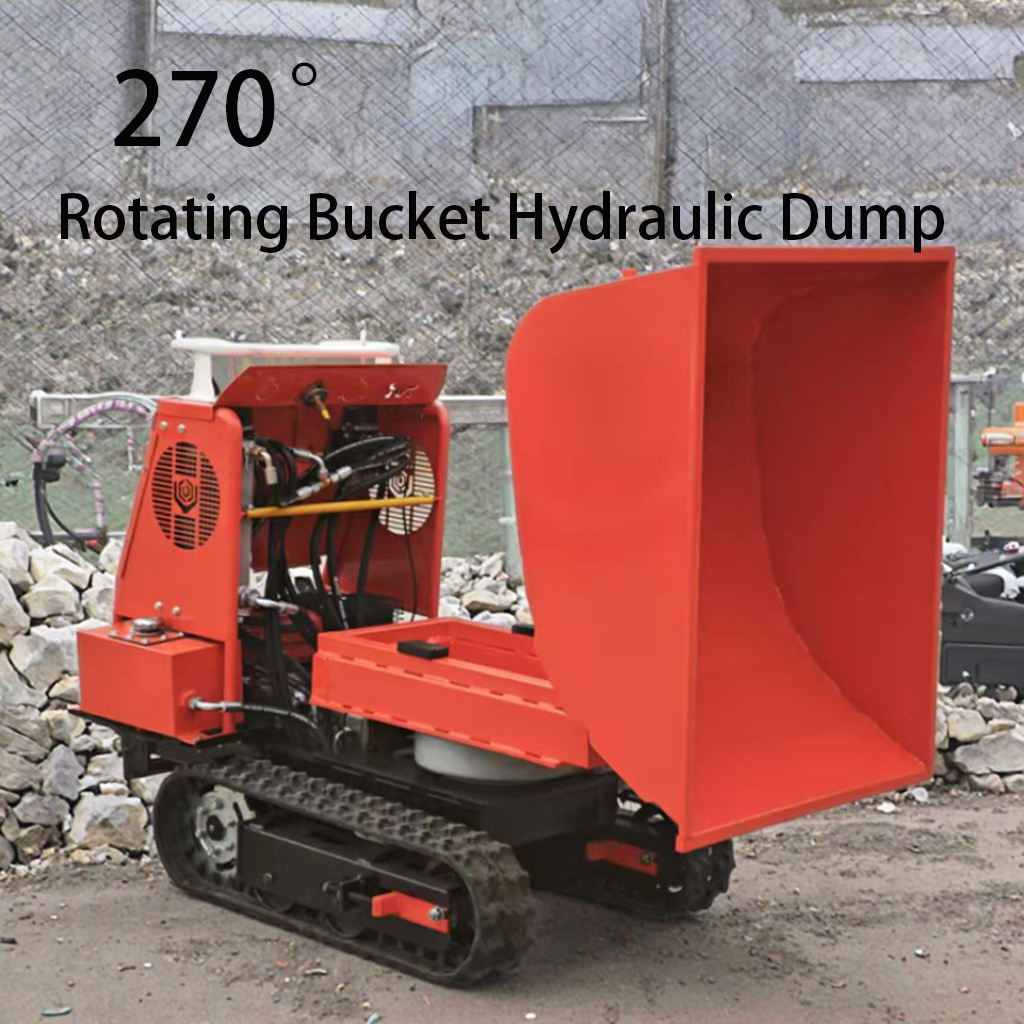

Rotation angle of hopper

0-270°

Hydraulic pumps

Series gear pump
(4cc/4cc)

Hydraulic motors

Disc with BMYS motor x 2

Working pressure

Maximum 180bar

Flow rate

8.0L

Motor torque

645Nm 180bar

Walking speed

0-3.5km

Climbing ability

30°

Wading depth

300mm

Ground clearance

100mm

Overall dimensions

2080×850×1260mm

Packaging dimensions

1650*880*1350mm

Remark: diesel or gasoline will be choosed Eurp.5 or EPA Cerficate

Efficient material transportation tools are the key to improving work efficiency and reducing costs in various construction and operation scenarios. Our small fully hydraulic tracked dump truck is precisely such a capable assistant designed to meet diverse needs. ​



Excellent performance, surging power

This small fully hydraulic tracked dump truck is equipped with a fully hydraulic system, ensuring smooth and efficient power transmission. Its powerful engine provides ample power, making it easy to handle both fast transportation on flat ground and rough mountain roads and muddy construction sites. The hydraulic controlled tipping bucket is easy to operate, with fast and clean unloading, greatly saving unloading time and improving work rhythm. ​
Flexible and compact,adaptable to a wide range
The body is compact and small, with a very small turning radius, allowing for flexible maneuvering in narrow spaces. Whether it is municipal engineering on urban streets, indoor decoration sites with limited space, or agricultural areas with complex terrain such as orchards and tea gardens, it can operate freely, breaking through the limitations that traditional large-scale transportation equipment cannot reach, and accurately transporting materials to designated locations. ​

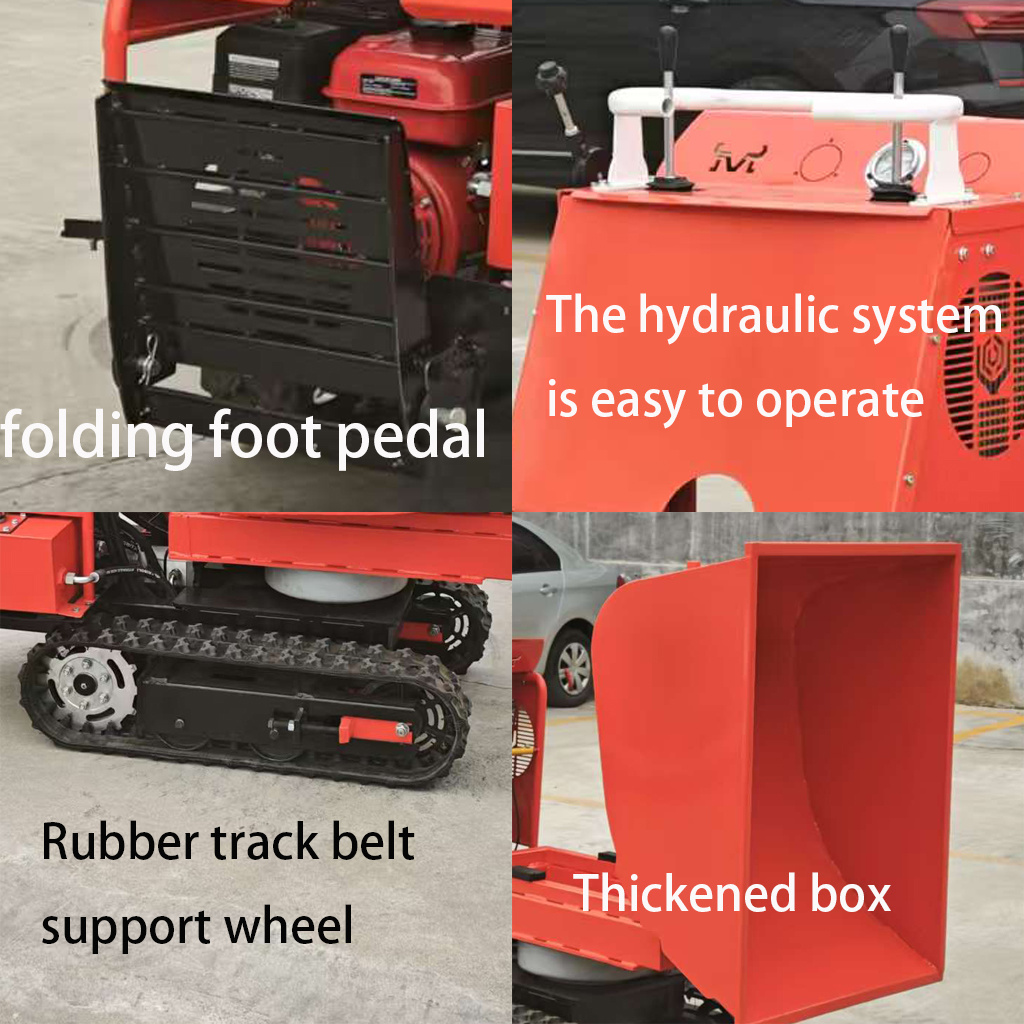

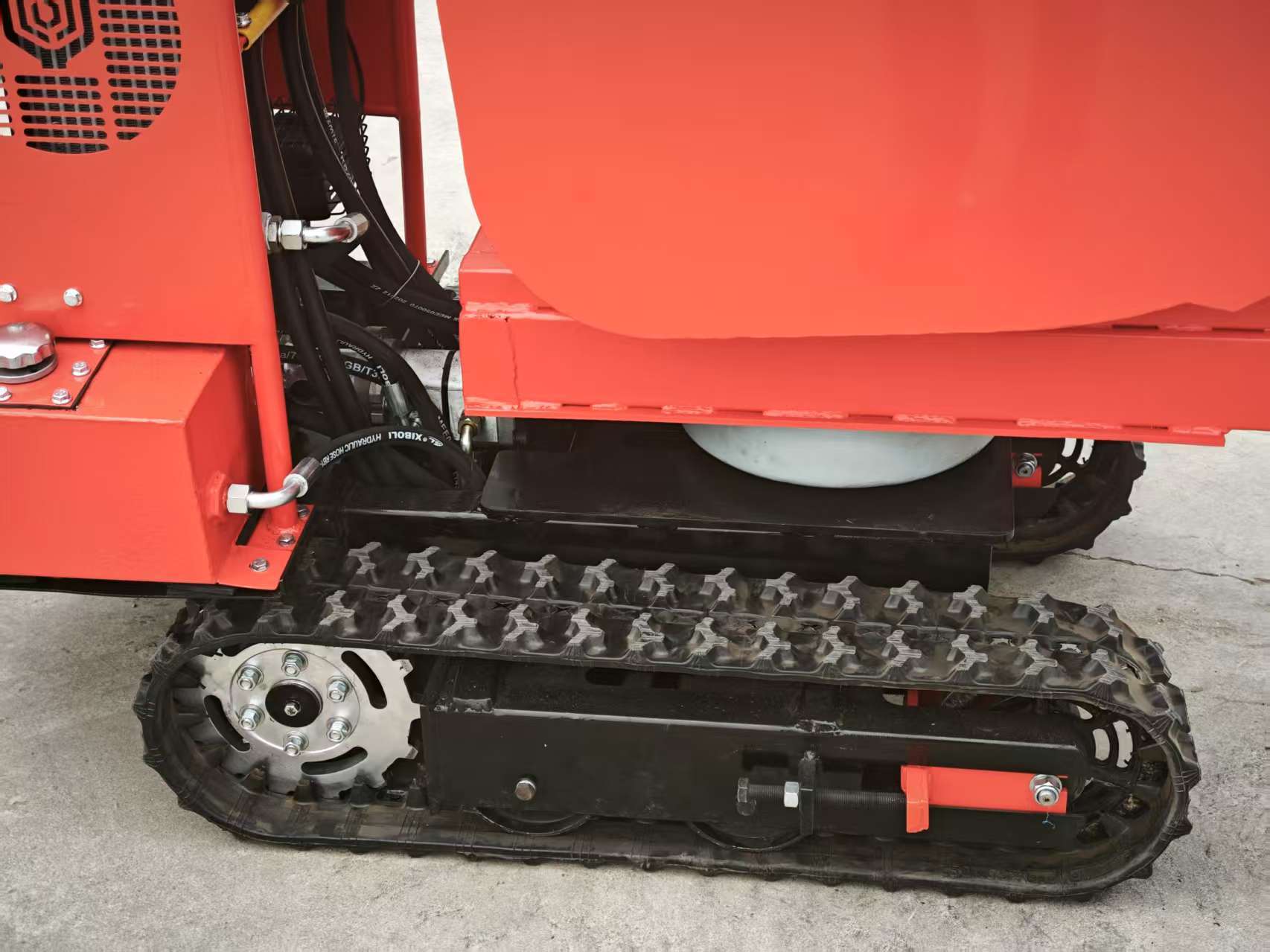

Track design, stable and reliable
Adopting a tracked walking method, it has higher stability and passability compared to wheeled vehicles. The track has a large contact area with the ground and low pressure, which can effectively avoid sinking on soft ground and walking on flat ground in harsh road conditions such as sand and wetlands. At the same time, the track has strong grip and excellent climbing ability, which can safely climb slopes with certain gradients, ensuring the continuity and safety of the transportation process. ​
Durable and easy to maintain
The overall structure of the vehicle is sturdy and durable, with high-quality steel used to build the body. Key components undergo strict quality testing to meet high-intensity operational requirements and reduce the frequency of malfunctions. Its design fully considers maintenance convenience, with a reasonable layout of various components, making it easy for daily inspection and maintenance, reducing usage costs, and providing solid guarantees for users' long-term stable use. ​


Choosing our small fully hydraulic tracked dump truck means choosing an efficient, convenient, and reliable material transportation solution. It will become your best partner in various projects and assignments, creating more value. ​
