270° Rotating Hopper Mini Dumper for Transportation
Category:
Self-loading mini dumper-full hydraulic
Chat with us now for a quick response.
Get expert sales advice within 12 hours.
Keyword:
270° Rotating Hopper Mini Dumper for Transportation
PRODUCT DETAILS

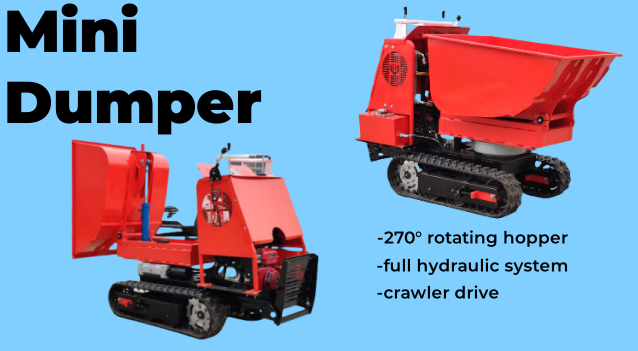

Mini Dumper
Product Specification:
Driving ways | Stand-on |
Drive ways | Hydraulic |
Steering ways | Hydraulic control valve*2(One control Two) |
Rubber cawler size | 150*60*38 |
Operating weight(Load capacity) | 1150kg(500kg) |
Engine | Briggs & Stratton 6.5HP 3600rmp |
Engine starting ways | Hand-start |
Carriage type and capacity | U type/280L |
Unloading ways | Hydraulic |
Hopper rotation angle | 0-270° |
Hydraulic dump | Series gear pump(4ccX2) |
Hydraulic motor | BYMS hydraulic motor |
Working pressure | Max. 180bar |
Flow rate | 8.0L |
Motor torque | 645Nm 180bar |
Walking speed | 0-3.5km |
Climbing ability | 30° |
Wading depth | 300mm |
Ground Clearance | 100mm |
Overall size | 2080*850*1260mm |
Package size | 1650*880*1350mm |
Product Advantages:
1.Enhanced Flexibility and Maneuverability
• The hopper can rotate 270 degrees,allowing for flexible positioning in confined spaces.This feature is particularly useful in tight construction sites or areas with limited access,improving loading and unloading efficiency.
2.Increased Productivity
• The rotation function enables quick and precise material dumping,reducing the time required for material handling processes.This leads to higher productivity on job sites.
3.Improved Safety
• By automating the dumping process,the need for manual handling of heavy loads is minimized,reducing the risk of injuries associated with manual labor.
4.Compact and Portable Design
• The mini dumper's compact size allows it to easily maneuver through tight spaces and challenging terrains,increasing on-site accessibility.
Product Details:
Engine: Diesel or gasoline engine
Loading Capacity: 500kg
Model: OBSQX500
OUR FACTOYR
Tai'an Oubosen Machinery Co., Ltd. was established in 2015 and is a high-tech enterprise that integrates research and development, production, sales, and service. The company has a modern production base and advanced production equipment; Having multiple professional technical personnel provides strong support for the continuous updating and quality improvement of the company's products.
INVENTORY
The company is mainly committed to the research and development, production, and sales of engineering machinery, agricultural machinery, construction machinery, and environmental protection machinery; The main products include small excavators, mini track transport vehicles, self loading small track mixer trucks, slip machines, football field grass planters, remote-controlled solar powered installation elevators, remote-controlled electric lawn mowers, self-propelled lawn mowers, and other products.
EQUIPMENT
Customer visits
COMMON PROBLEM
Can we provide drawings or prototypes for you to develop and promise exclusive sales?
We accept customization with drawings or samples to achieve true co-development, and promise to adhere to targeted sales of customized products.
What other additional services will we offer?
Professional advertising videos. We have our own photographers and video editors to offer you professional customized advertising videos.
We have our own graphic design team that can provide you with professional high-definition images for your advertisement.
We have a large professional technical team, and we will designate one engineer and salesman to help you improve sales and after-sales efficiency.
