Self-Loading 350L Mini Crawler Concrete Mixer
Category:
Concrete mixer-gearbox
Chat with us now for a quick response.
Get expert sales advice within 12 hours.
Keyword:
Self-Loading 350L Mini Crawler Concrete Mixer
PRODUCT DETAILS

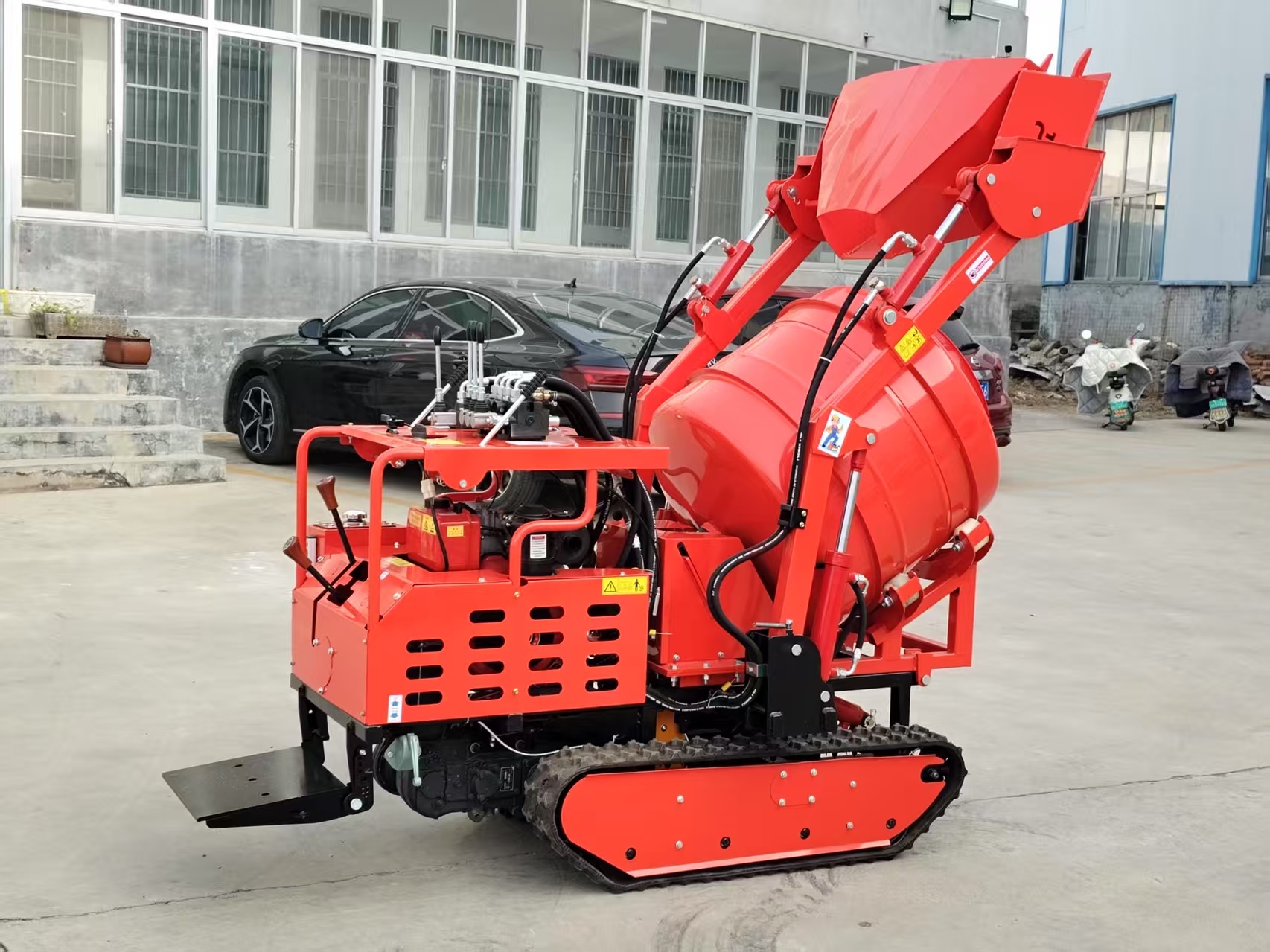

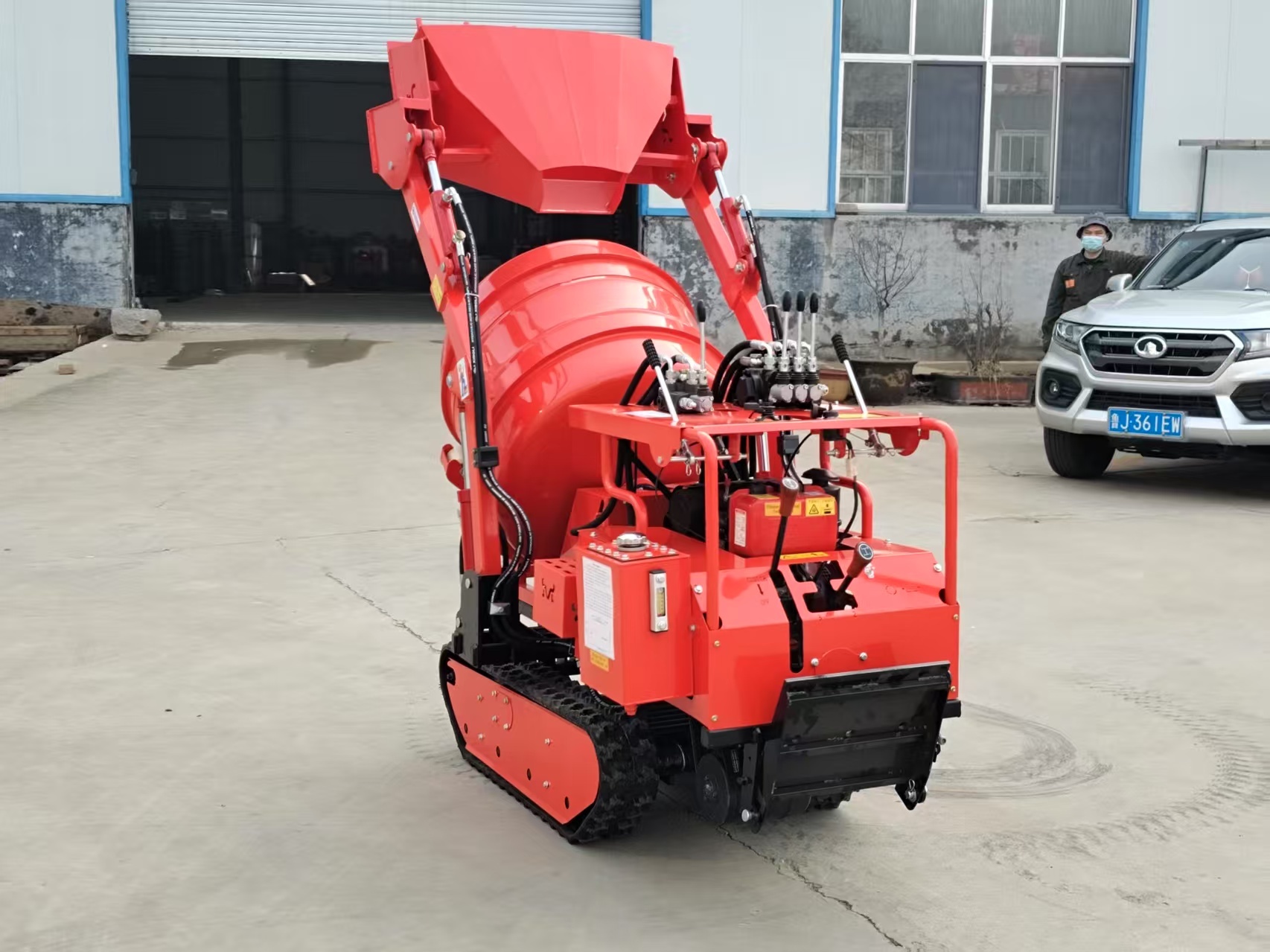

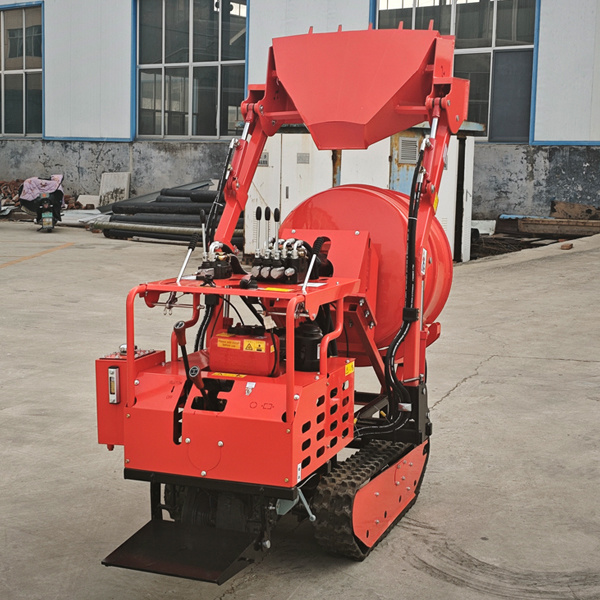

Mini Crawler Concrete Mixer
Product Specification:
Engine | Changchai 178 diesel engine,4-stroken,5.5HP,air cooler |
Gearbox | GL-10 Gear：3F+1R |
Operation ways | Manual Lever |
Unloading ways | Hydraulic |
Capacity of Shovel | 0.08m³ |
Feeding capacity | ≥450L |
Discharge capacity | ≤300L |
Weight of mixer | ≤500KG |
Size of drum | Φ760*820 or Φ660*920 |
Overall size | 2500×1080×1500mm |
Net weight/Gross weight | 580KG/650KG |

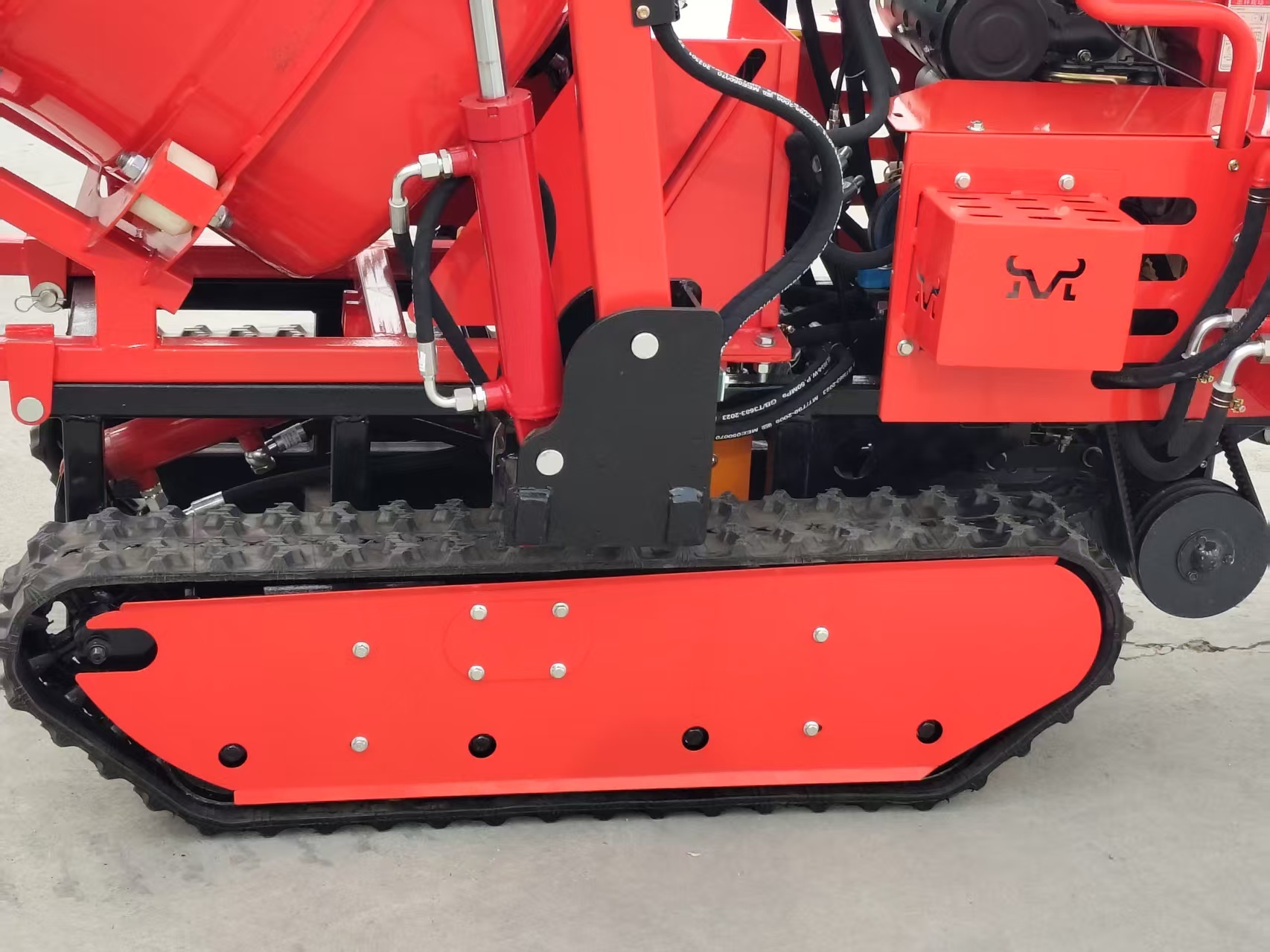

Rubber crawler size | 150x60x44 |
Rubber crawler touching length | 900mm |
Walking speed | 2-8KM |
Obstacle ability | Max.30° Vertical 200mm |
Wading depth | 300mm |
Package size(one set) | 2070x1100x1600mm(Plywood case) |
Product Advantages:
1. Good passability: The crawler design ensures stable travel on complex terrains (such as muddy or steep slopes) and strong adaptability.
2. High mobility: Compact size and light weight, with flexible operation and easy relocation, suitable for working in confined spaces.
3. Multi-functionality: Combines loading, mixing, and transporting functions, reducing equipment needs and saving costs.
4. High mixing quality: Uniform mixing effectively prevents concrete segregation and ensures construction quality.
5. High work efficiency: Short cycle time and high productivity, suitable for continuous operations.
6. Environmentally friendly and energy-saving: Some models are equipped with an automatic cleaning function, reducing material waste and environmental pollution.
Product Details:
