OUBOSEN

500KG mini dumper with loader

500KG full hydraulic mini dumper

Category:

Self-loading mini dumper-full hydraulic




Keyword:

500KG mini dumper with loader

PRODUCT DETAILS

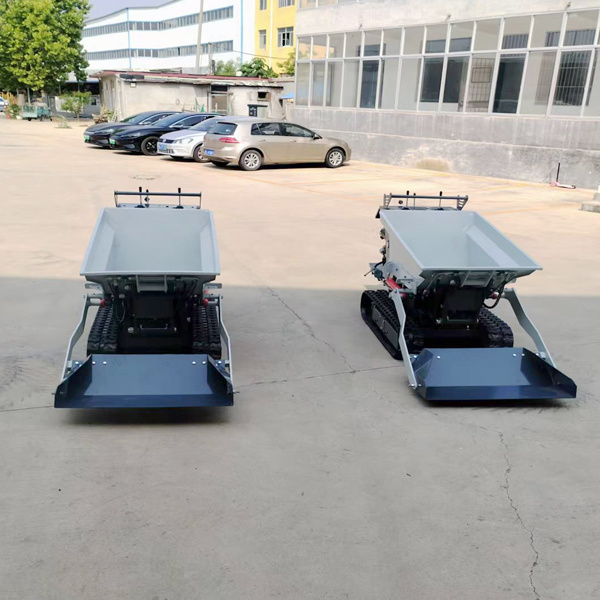

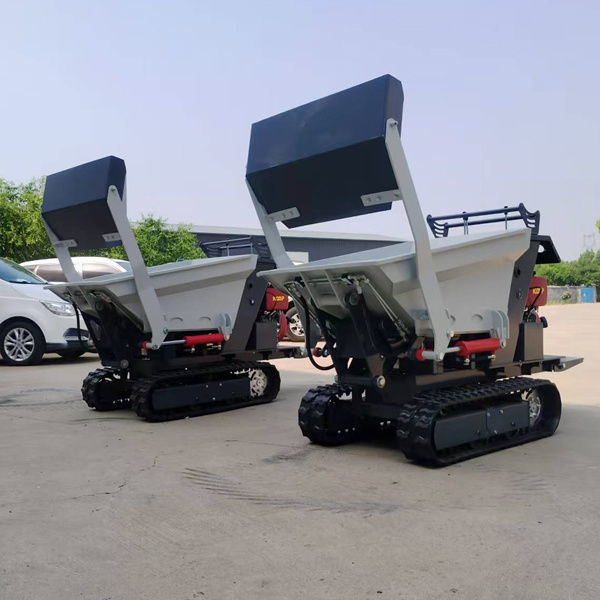

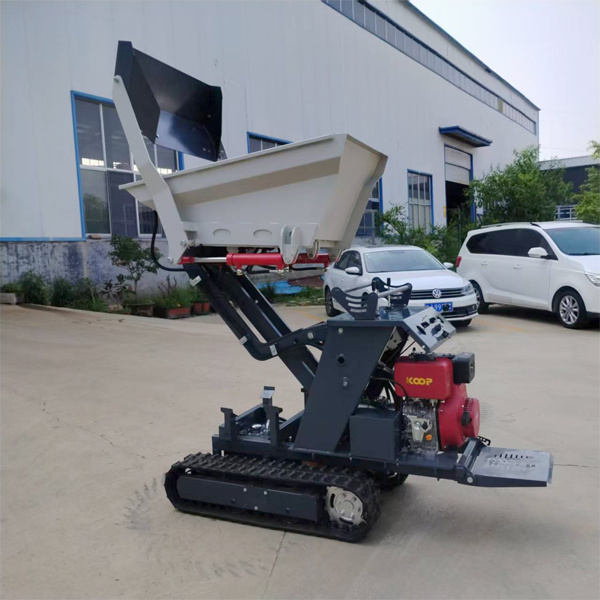

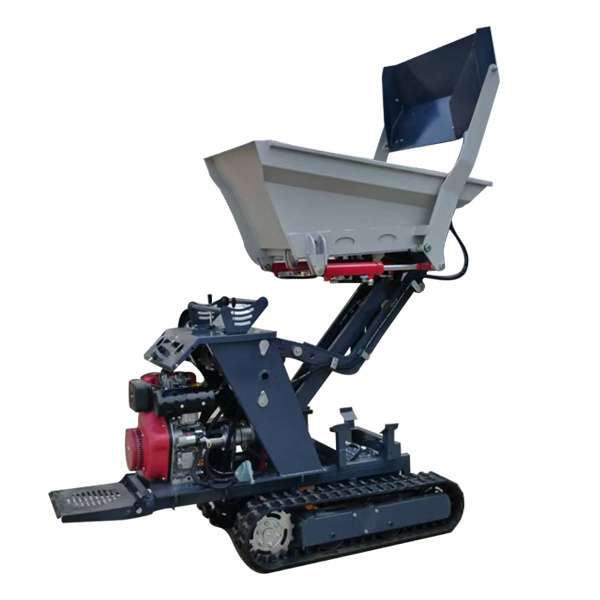

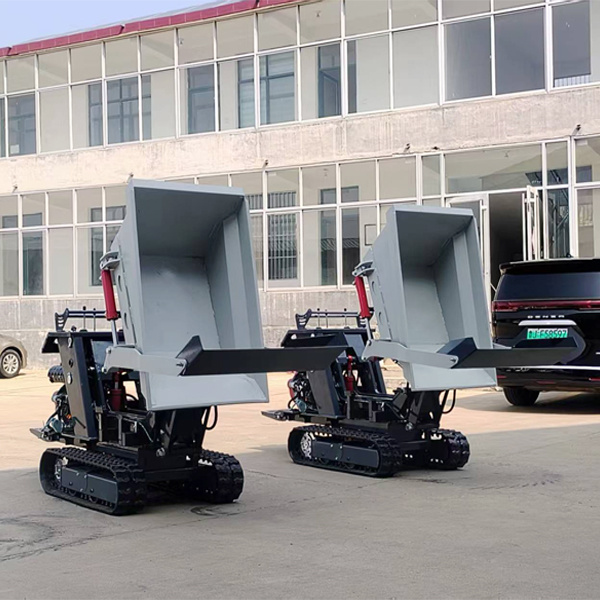

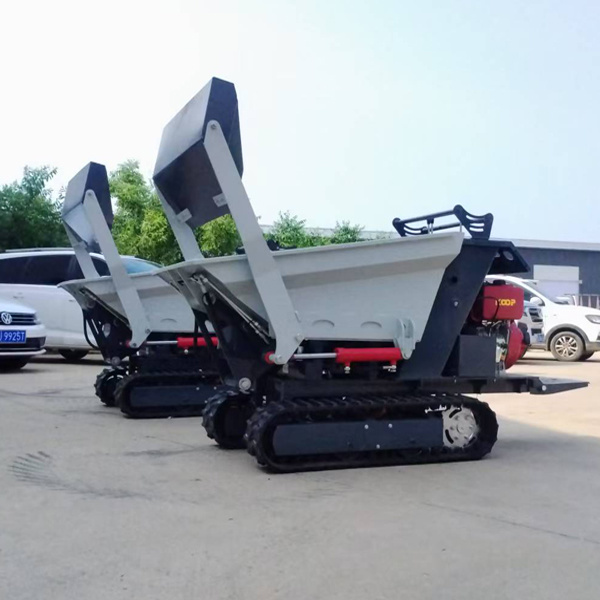

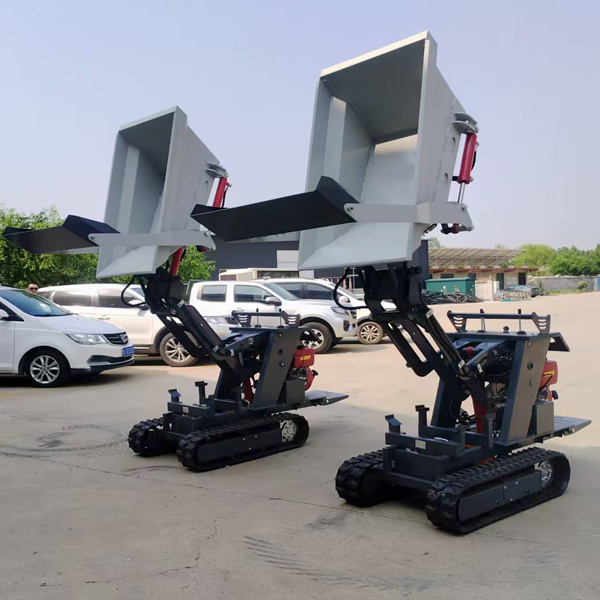

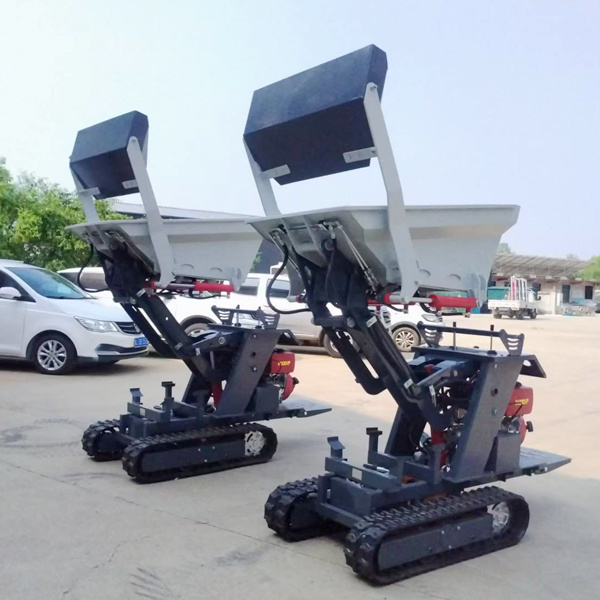

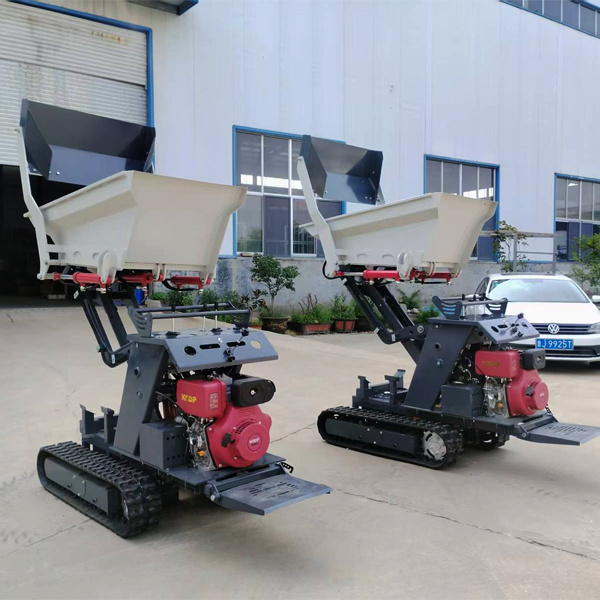

500KG mini dumper with loader

Model

OBSYL-500Q with a lifting

Weight

590Kg

Max.loading weight

500Kg

Parameter of engine

Brand

Koop



Model

182FAEurp.5



Start ways

electric



displacement (ml)

354



Timer

have



Power

6.5HP4.78KW/3600



Fuel tank (L)

3.5


自动检测



Oil capacity (L)

1.1

Hydraulic system

brand

Junbao



Compose

Valve bodyhandle1/2way change valvedirect-acting relief valvedual pressure gaugesdual HGP-3A oil pumps



Function

Ensure stable vehicle operation

Motor

displacement

200cc



Max.working pressure

18MPa



Max.torque

645Nm

Speed

0-4.0km/h

​Min. turning radius​​

1.2m

Track gauge

640mm

Min.ground clearance

100mm

Lift the tipping height

1550mm

Hill-climbing capability

25°

Hydraulic oil tank capacity

18L

Hydraulic oil No.

46#Anti-wear hydraulic oil

Cargo box capacity

0.281220*720*480mm

LxWXHmm

1980x840x1450

Product Highlights

  1. Powerful Loading Capacity: This transporter is designed to handle a substantial load of 500KG, making it suitable for various heavy - duty transportation tasks. Whether it's moving construction materials, agricultural produce, or industrial goods, its robust structure ensures reliable performance.
  2. Full Hydraulic System: Equipped with a full hydraulic system, the transporter offers smooth operation. The hydraulic components enable efficient power transfer, resulting in stable and precise control during operation. This not only improves work efficiency but also reduces operator fatigue. For example, the hydraulic lifting mechanism allows for easy and quick dumping of materials, and the hydraulic steering system ensures flexible maneuverability.
  3. Crawler Design: The crawler tracks provide excellent traction and stability. They can adapt to different terrains, including muddy, uneven, or sloping surfaces. The wide - spread tracks distribute the vehicle's weight evenly, reducing the pressure on the ground and preventing it from getting stuck easily. This makes the transporter ideal for use in construction sites, farms, and mountainous areas.
  4. Integrated Shovel: The built - in shovel is a practical feature that allows for self - loading. It can scoop up materials such as soil, sand, or gravel directly, eliminating the need for additional loading equipment in many cases. This integrated design streamlines the transportation process, saving both time and cost.

Applications

  1. Construction Industry: It can be used to transport construction materials such as bricks, cement, sand, and gravel on construction sites. The crawler design allows it to move around easily in rough and unfinished construction areas.
  2. Agriculture: In agricultural settings, it can transport agricultural products like fruits, vegetables, and grains. The self - loading shovel can also be used to move soil, fertilizers, or manure, facilitating various farming operations.
  3. Gardening and Landscaping: For gardening and landscaping projects, it can carry plants, soil, and decorative stones. The ability to operate in different terrains makes it useful for maintaining large gardens or creating new landscapes.
  4. Mining and Quarrying: In small - scale mining or quarrying operations, it can transport minerals or stones over short distances. The robust construction and high - load capacity make it suitable for such demanding environments.

Quality Assurance

  1. Material Quality: The vehicle's frame and key components are made of high - quality steel, which has high strength and good wear - resistance. This ensures the durability of the transporter, allowing it to withstand long - term heavy - duty use.
  2. Manufacturing Process: We follow strict manufacturing processes and quality control procedures. Each vehicle undergoes multiple inspections during production to ensure that all components are assembled correctly and that the overall performance meets high standards.
  3. Testing: Before leaving the factory, every transporter is thoroughly tested. It is tested for load - bearing capacity, hydraulic system functionality, engine performance, and stability on different terrains. This comprehensive testing guarantees that the product delivered to customers is in perfect working condition.

After - Sales Service

  1. Warranty: We offer a  1 - year warranty for the product. During the warranty period, if there are any quality problems, we will provide free repair or replacement of defective parts.
  2. Technical Support: Our professional technical team is available to provide technical support at any time. Customers can contact us via phone, email, or online chat for any questions regarding product operation, maintenance, or troubleshooting.
  3. Spare Parts Supply: We maintain a sufficient inventory of spare parts to ensure that customers can quickly obtain the necessary parts for repair. Fast delivery of spare parts is guaranteed to minimize downtime.



OUR FACTOYR

Equipment

Tai'an Oubosen Machinery Co., Ltd. was established in 2015 and is a high-tech enterprise that integrates research and development, production, sales, and service. The company has a modern production base and advanced production equipment; Having multiple professional technical personnel provides strong support for the continuous updating and quality improvement of the company's products.

INVENTORY

Equipment

The company is mainly committed to the research and development, production, and sales of engineering machinery, agricultural machinery, construction machinery, and environmental protection machinery; The main products include small excavators, mini track transport vehicles, self loading small track mixer trucks, slip machines, football field grass planters, remote-controlled solar powered installation elevators, remote-controlled electric lawn mowers, self-propelled lawn mowers, and other products.

EQUIPMENT

Equipment

Customer visits

Customer visits

COMMON PROBLEM

Can we provide drawings or prototypes for you to develop and promise exclusive sales?

Yes, we have a huge technical team of 16 engineers, 4 engineers specializing in gardening machinery, 2engineers specializing in electric machinery, and 10 engineers specializing in the mini construction machinery.
We accept customization with drawings or samples to achieve true co-development, and promise to adhere to targeted sales of customized products.

Do you have ISO quality, environmental and safety management system certificate?

Yes, if you need ,we can provide the certificates.We strictly adheres to international labor laws and BSCI.

What other additional services will we offer?

Professional advertising videos. We have our own photographers and video editors to offer you professional customized advertising videos.

We have our own graphic design team that can provide you with professional high-definition images for your advertisement.

We have a large professional technical team, and we will designate one engineer and salesman to help you improve sales and after-sales efficiency.

what's your warranty policy?

Normally warranty period is one year (non-artificial damage),we will send you new spare parts to replace by air For free. As for the engines, we will provide 3 years warranty for commercial engines , and one year warranty for Chinese brand engines.

What customization can offer?

Color,Different engines (Changchai,Koop,Lifan, Loncin, B&S, Honda),Labels customization,Logo customization,Package customization,Manual books customization,Structure components customization

What's the MOQ?

Usually the MOQ is 1set, but it will be adjusted accordingly if customers need OEM or ODM customization.
