Agriculture Use Rotating Hopper 500 kg Mini Dumper
Category:
Self-loading mini dumper-full hydraulic
Chat with us now for a quick response.
Get expert sales advice within 12 hours.
Keyword:
Agriculture Use Rotating Hopper 500 kg Mini Dumper
PRODUCT DETAILS
Rotating Mini Crawler Dumper
Product Specification:
Driving ways | Stand-on |
Drive ways | Hydraulic |
Steering ways | Hydraulic control valve*2(One control Two) |
Rubber cawler size | 150*60*38 |
Operating weight(Load capacity) | 1150kg(500kg) |
Engine | Briggs & Stratton 6.5HP 3600rmp |
Engine starting ways | Hand-start |
Carriage type and capacity | U type/280L |
Unloading ways | Hydraulic |
Hopper rotation angle | 0-270° |
Hydraulic dump | Series gear pump(4ccX2) |
Hydraulic motor | BYMS hydraulic motor |
Working pressure | Max. 180bar |
Flow rate | 8.0L |
Motor torque | 645Nm 180bar |
Walking speed | 0-3.5km |
Climbing ability | 30° |
Wading depth | 300mm |
Ground Clearance | 100mm |
Overall size | 2080*850*1260mm |
Package size | 1650*880*1350mm |
Product Advantages:
1. Enhanced Flexibility
• The rotary hopper allows the loader to adjust the direction of material discharge more easily. It can rotate to different angles to place materials in various spots without having to reposition the entire machine.
2. Improved Efficiency
• With the ability to rotate, the hopper can quickly switch between different work areas or tasks. This means that the loader can handle multiple material loading and unloading operations in a shorter period.
3. Space-saving Operation
• In confined spaces, such as narrow construction sites or areas with limited maneuverability, the rotary hopper can be particularly useful.
4. Reduced Material Spillage
• The precise control of the hopper's rotation helps to minimize the risk of material spillage.
5. Increased Versatility
• The rotary hopper adds to the overall versatility of the crawler loader.

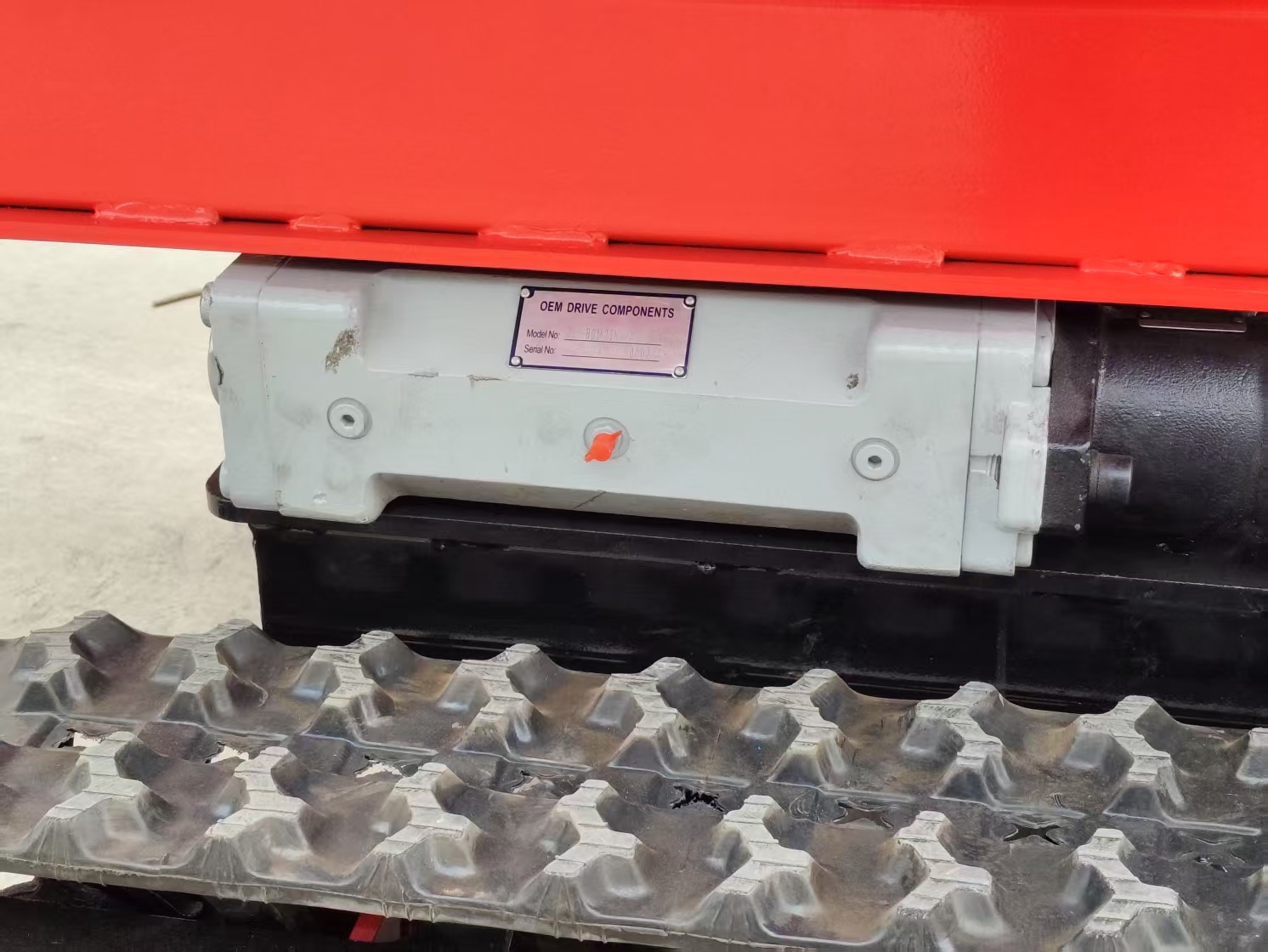

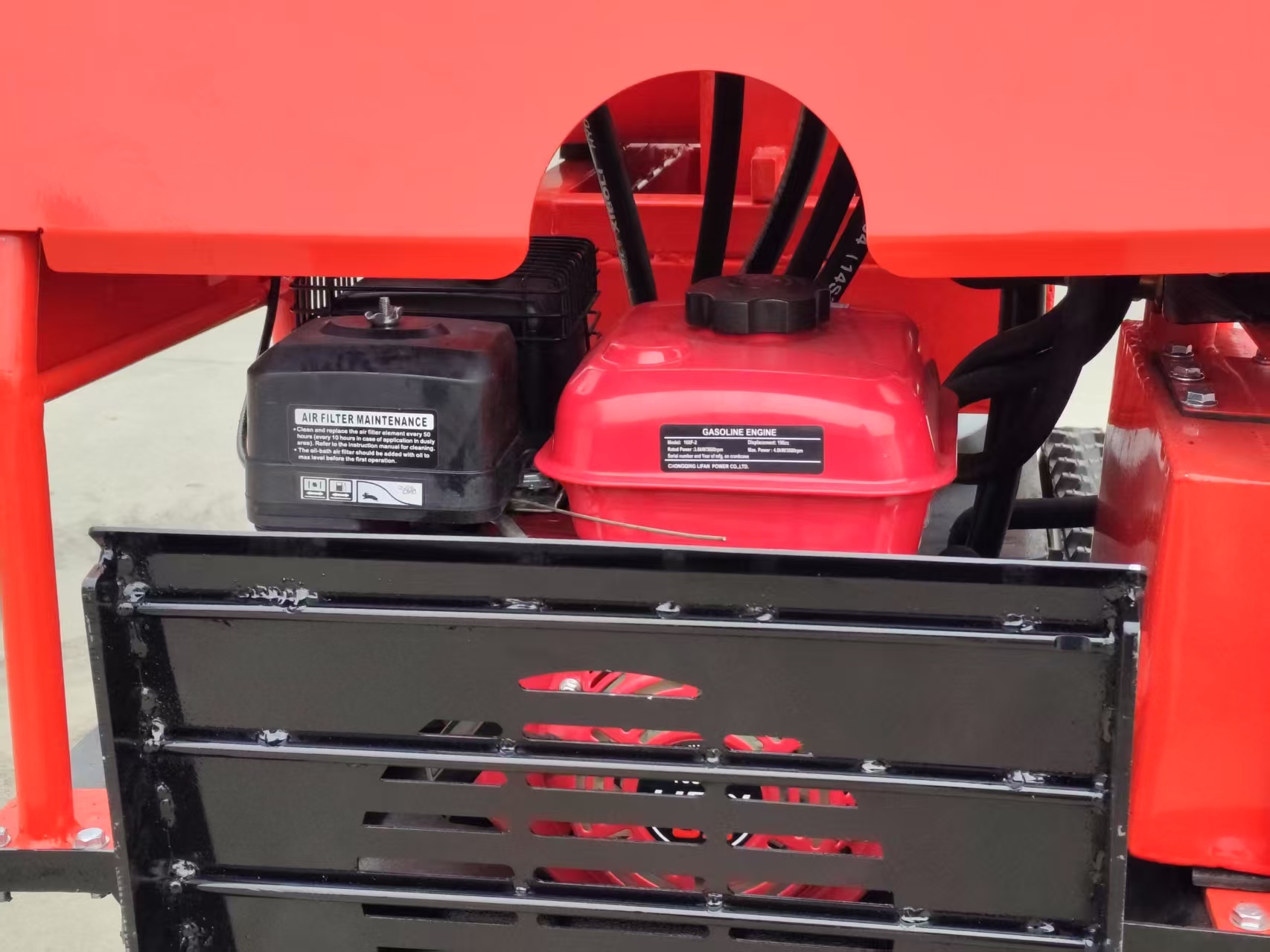

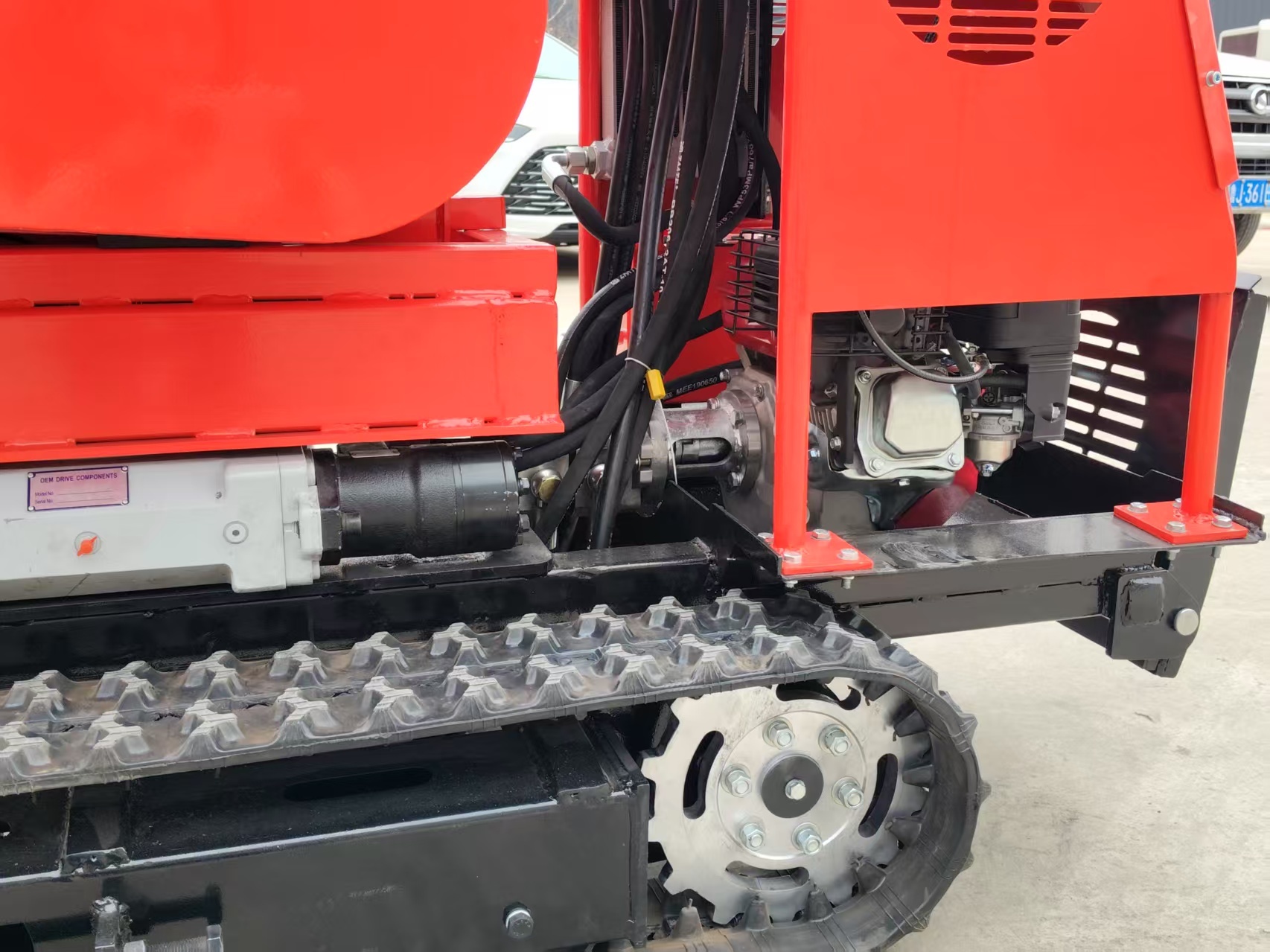

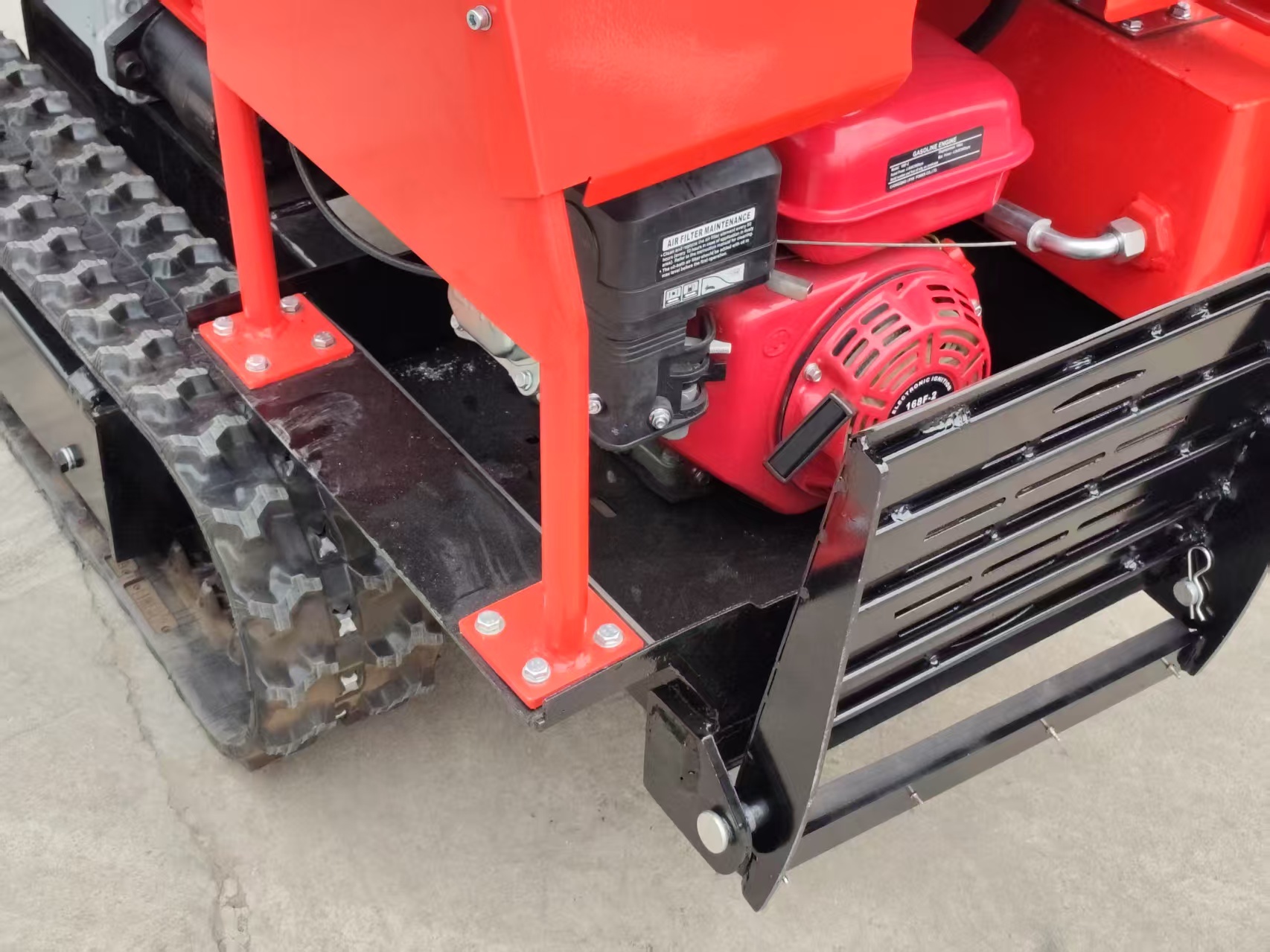

Product Details:
OUR FACTOYR
Tai'an Oubosen Machinery Co., Ltd. was established in 2015 and is a high-tech enterprise that integrates research and development, production, sales, and service. The company has a modern production base and advanced production equipment; Having multiple professional technical personnel provides strong support for the continuous updating and quality improvement of the company's products.
INVENTORY
The company is mainly committed to the research and development, production, and sales of engineering machinery, agricultural machinery, construction machinery, and environmental protection machinery; The main products include small excavators, mini track transport vehicles, self loading small track mixer trucks, slip machines, football field grass planters, remote-controlled solar powered installation elevators, remote-controlled electric lawn mowers, self-propelled lawn mowers, and other products.
EQUIPMENT
Customer visits
COMMON PROBLEM
Can we provide drawings or prototypes for you to develop and promise exclusive sales?
We accept customization with drawings or samples to achieve true co-development, and promise to adhere to targeted sales of customized products.
What other additional services will we offer?
Professional advertising videos. We have our own photographers and video editors to offer you professional customized advertising videos.
We have our own graphic design team that can provide you with professional high-definition images for your advertisement.
We have a large professional technical team, and we will designate one engineer and salesman to help you improve sales and after-sales efficiency.
