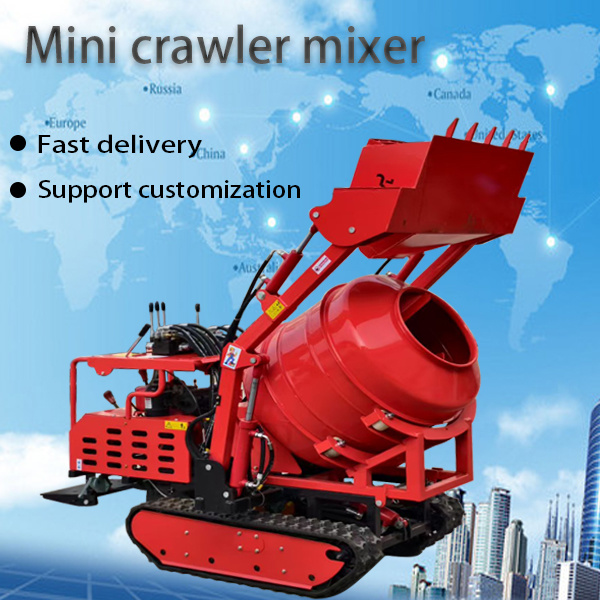

Automatic Crawler Type Mini Mobile Self Loading Concrete Mixer Truck

Price : USD2800-USD3000

Category:

Rubber crawler concrete mixer

Concrete mixer-gearbox




Keyword:

Automatic Crawler Type Mini Mobile Self Loading Concrete Mixer Truck

PRODUCT DETAILS

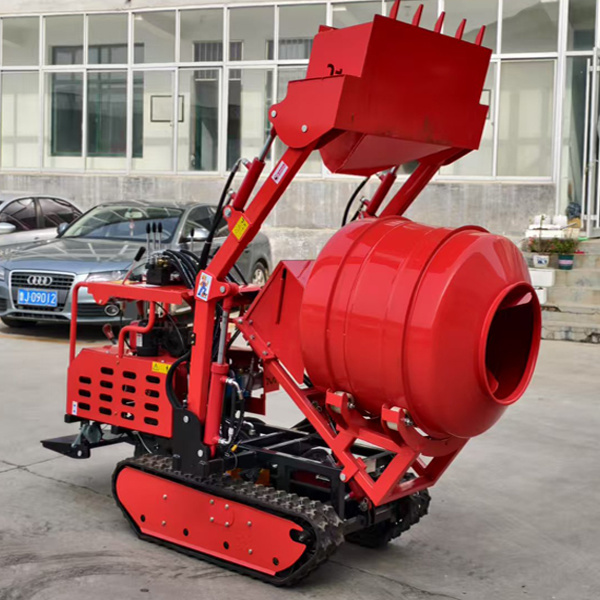

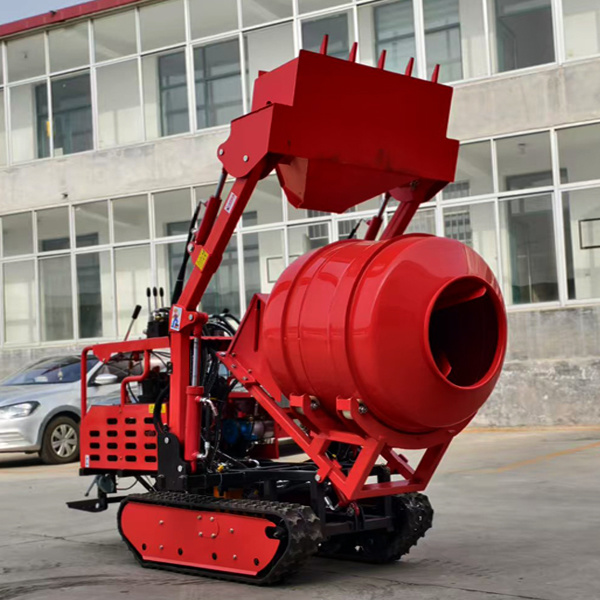

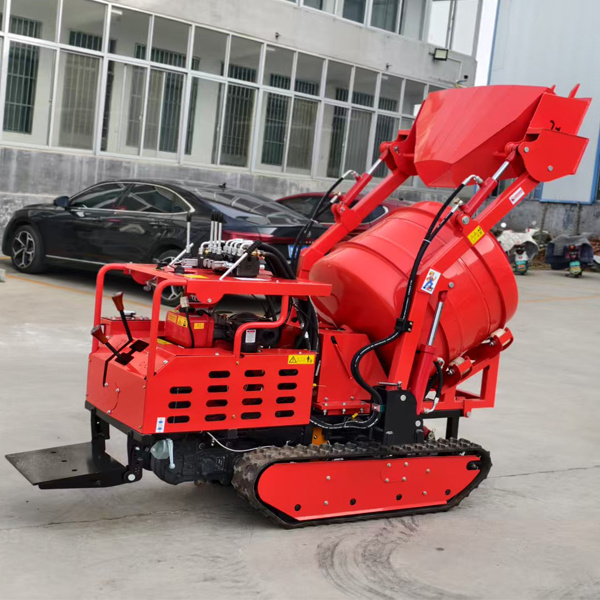

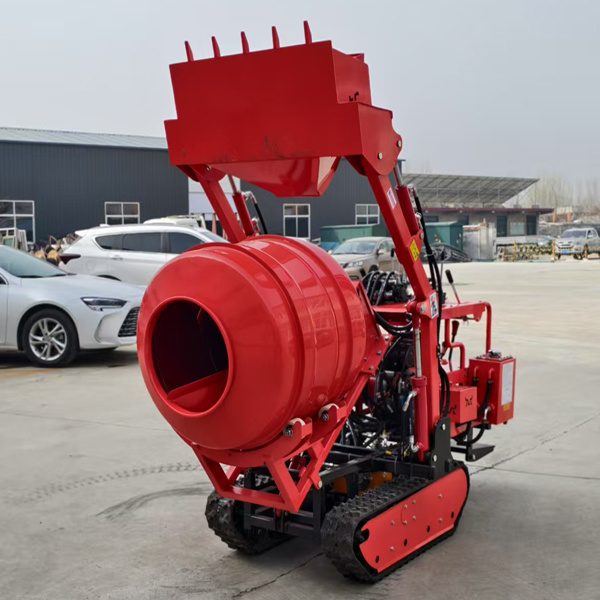

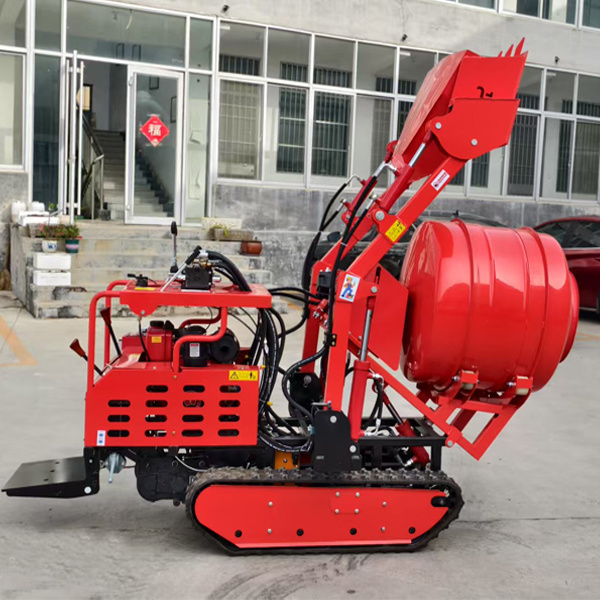

Automatic Crawler Type Mini Mobile Self Loading Concrete Mixer Truck



How do you choose mixer? as follows:

           1.Mixing Capacity: Commonly ranges from 280L to 1000L, selected based on project requirements.


        2.Power Type: Diesel (for outdoor high-power applications) vs. gasoline engine (environmentally friendly and quiet).


        3.Track Material: Rubber tracks (to protect the ground) vs. Steel tracks (wear-resistant and impact-resistant).



        4.Additional Features: Remote control operation.

Teachnical Parameter:



No. Model/parameter OBSLY-350L
1 Engine Changhcai 178,diesel engine 5.5HP,4-stroken,air cooler
2 Gearbox 3F+1R    GL-10
3 Operation ways Handle lever

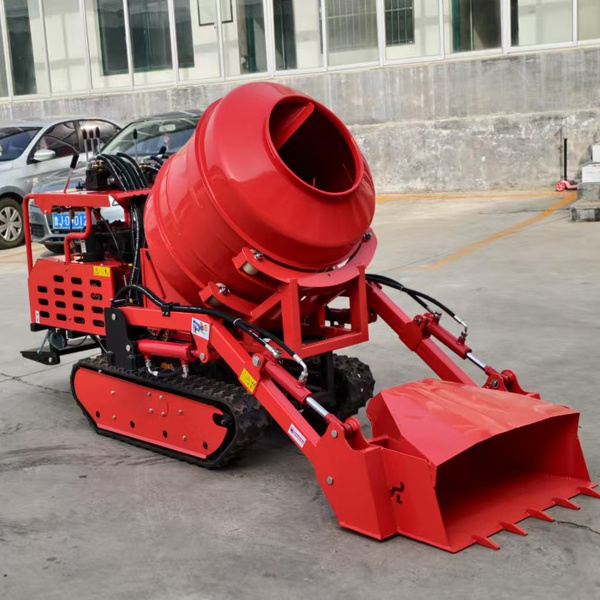

4 Capacity of shovel  0.08m3
5 Feeding of capacity >=450L
6 Discharge of capacity <=300L
7 Weight of mixer        <=500KG
8 Size of drum Ø760x820 or Ø660x920
9 Overall size 2500x1080x1500mm
10 Net/gross weight 580KG/650KG
11 Rubber crawler size 150x64x44
12 Rubber crawler touching length 900mm
13 Walking speed 0-8KM
14 Obstacle ability Max.30º Vertical 200mm
15 Wading depth 300mm
16 Package size 2070x1100x1600mm
17 1x20ft/40ft 6sets/12sets

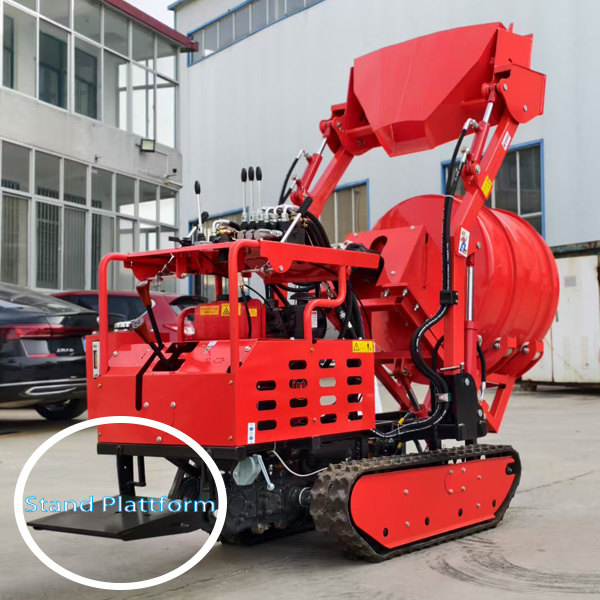

Detail:

By choosing our products, you will enjoy the following advantages:

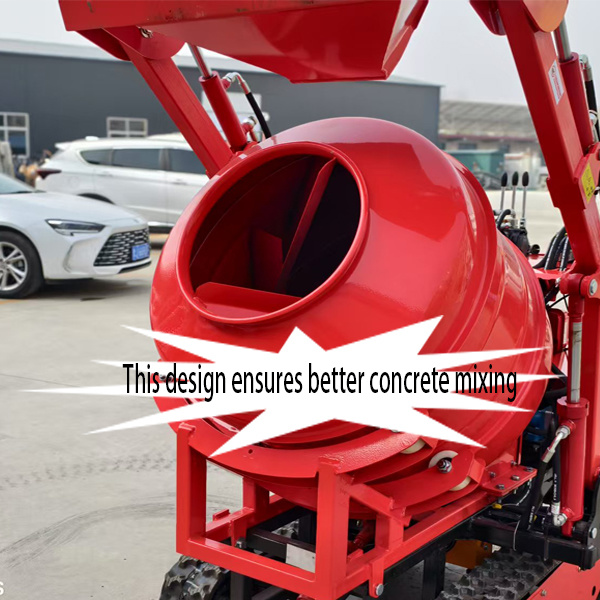

1. Exceptional Performance* Our 350L mixer is exquisitely designed to ensure more uniform concrete mixing, enhancing the quality of the final product.
2. Flexible Capacity: Offering mixing capacities ranging from 280L to 1000L to meet the needs of different scale projects.
3. Diverse Power Options: Depending on your operating environment, you can choose between diesel power (suitable for outdoor high-power operations) or gasoline engine power (environmentally friendly and low noise).
4. Durable Materials: Rubber tracks protect the ground, while steel tracks are wear-resistant and impact-resistant, adapting to various working conditions.
5. Advanced Features: Equipped with remote control functionality to improve operational convenience and safety.
6. Customization Services: We provide customization options to ensure the equipment perfectly fits your specific requirements.
7. Quality Service: From pre-sales consultation to after-sales service, our professional team will offer you full support.

Choosing our products means opting for an efficient, reliable, and considerate solution, facilitating the smooth progress of your project.



OUR FACTOYR

Equipment

Tai'an Oubosen Machinery Co., Ltd. was established in 2015 and is a high-tech enterprise that integrates research and development, production, sales, and service. The company has a modern production base and advanced production equipment; Having multiple professional technical personnel provides strong support for the continuous updating and quality improvement of the company's products.

INVENTORY

Equipment

The company is mainly committed to the research and development, production, and sales of engineering machinery, agricultural machinery, construction machinery, and environmental protection machinery; The main products include small excavators, mini track transport vehicles, self loading small track mixer trucks, slip machines, football field grass planters, remote-controlled solar powered installation elevators, remote-controlled electric lawn mowers, self-propelled lawn mowers, and other products.

EQUIPMENT

Equipment

Customer visits

Customer visits

COMMON PROBLEM

Can we provide drawings or prototypes for you to develop and promise exclusive sales?

Yes, we have a huge technical team of 16 engineers, 4 engineers specializing in gardening machinery, 2engineers specializing in electric machinery, and 10 engineers specializing in the mini construction machinery.
We accept customization with drawings or samples to achieve true co-development, and promise to adhere to targeted sales of customized products.

Do you have ISO quality, environmental and safety management system certificate?

Yes, if you need ,we can provide the certificates.We strictly adheres to international labor laws and BSCI.

What other additional services will we offer?

Professional advertising videos. We have our own photographers and video editors to offer you professional customized advertising videos.

We have our own graphic design team that can provide you with professional high-definition images for your advertisement.

We have a large professional technical team, and we will designate one engineer and salesman to help you improve sales and after-sales efficiency.

what's your warranty policy?

Normally warranty period is one year (non-artificial damage),we will send you new spare parts to replace by air For free. As for the engines, we will provide 3 years warranty for commercial engines , and one year warranty for Chinese brand engines.

What customization can offer?

Color,Different engines (Changchai,Koop,Lifan, Loncin, B&S, Honda),Labels customization,Logo customization,Package customization,Manual books customization,Structure components customization

What's the MOQ?

Usually the MOQ is 1set, but it will be adjusted accordingly if customers need OEM or ODM customization.
