Full Hydraulic 350L Mini Crawler Concrete Mixer for Construction
Category:
Concrete mixer-full hydraulic
Chat with us now for a quick response.
Get expert sales advice within 12 hours.
Keyword:
Full Hydraulic 350L Mini Crawler Concrete Mixer for Construction
PRODUCT DETAILS

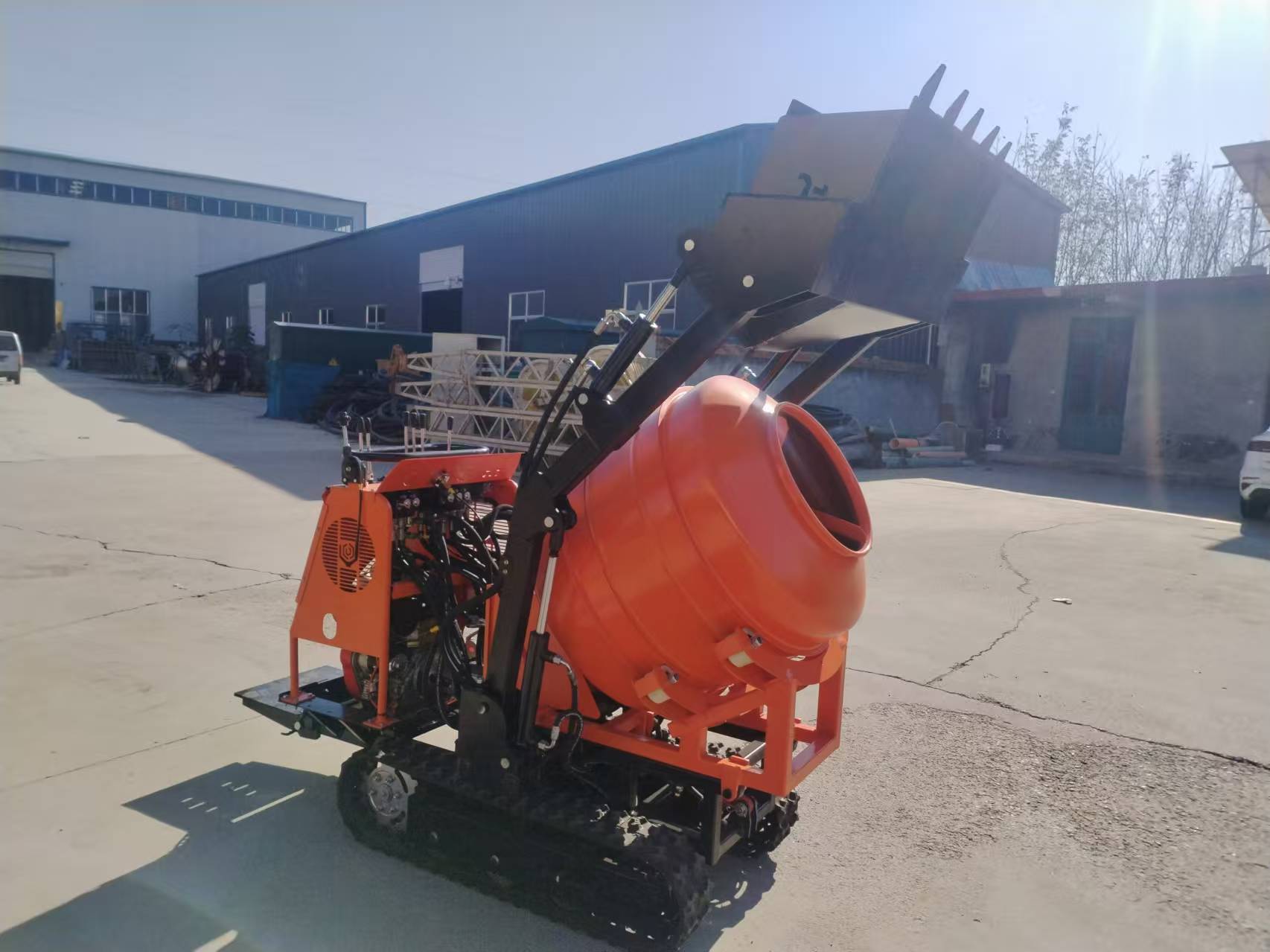

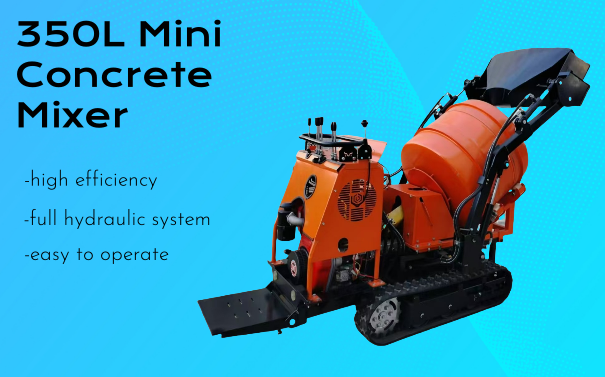

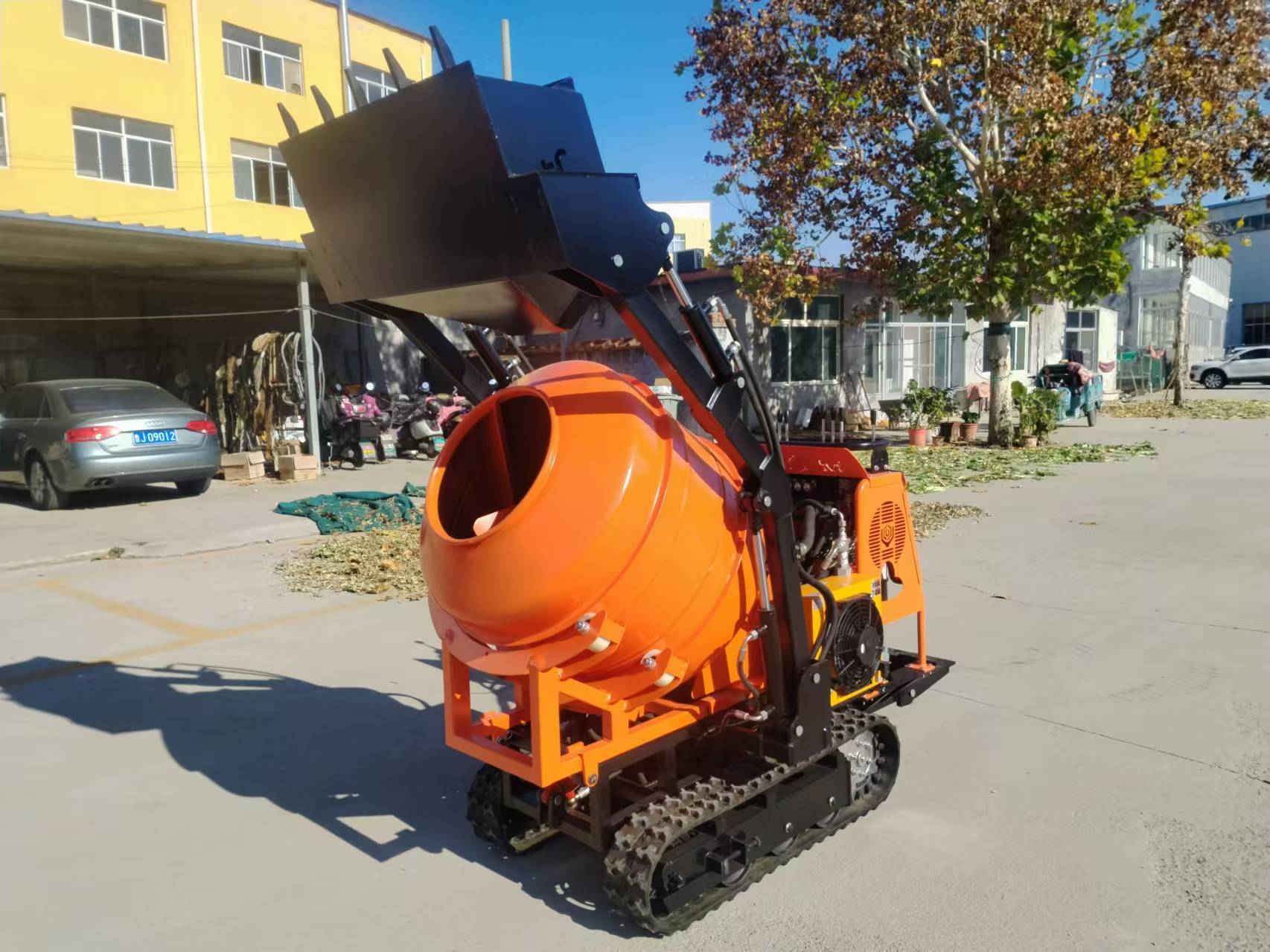

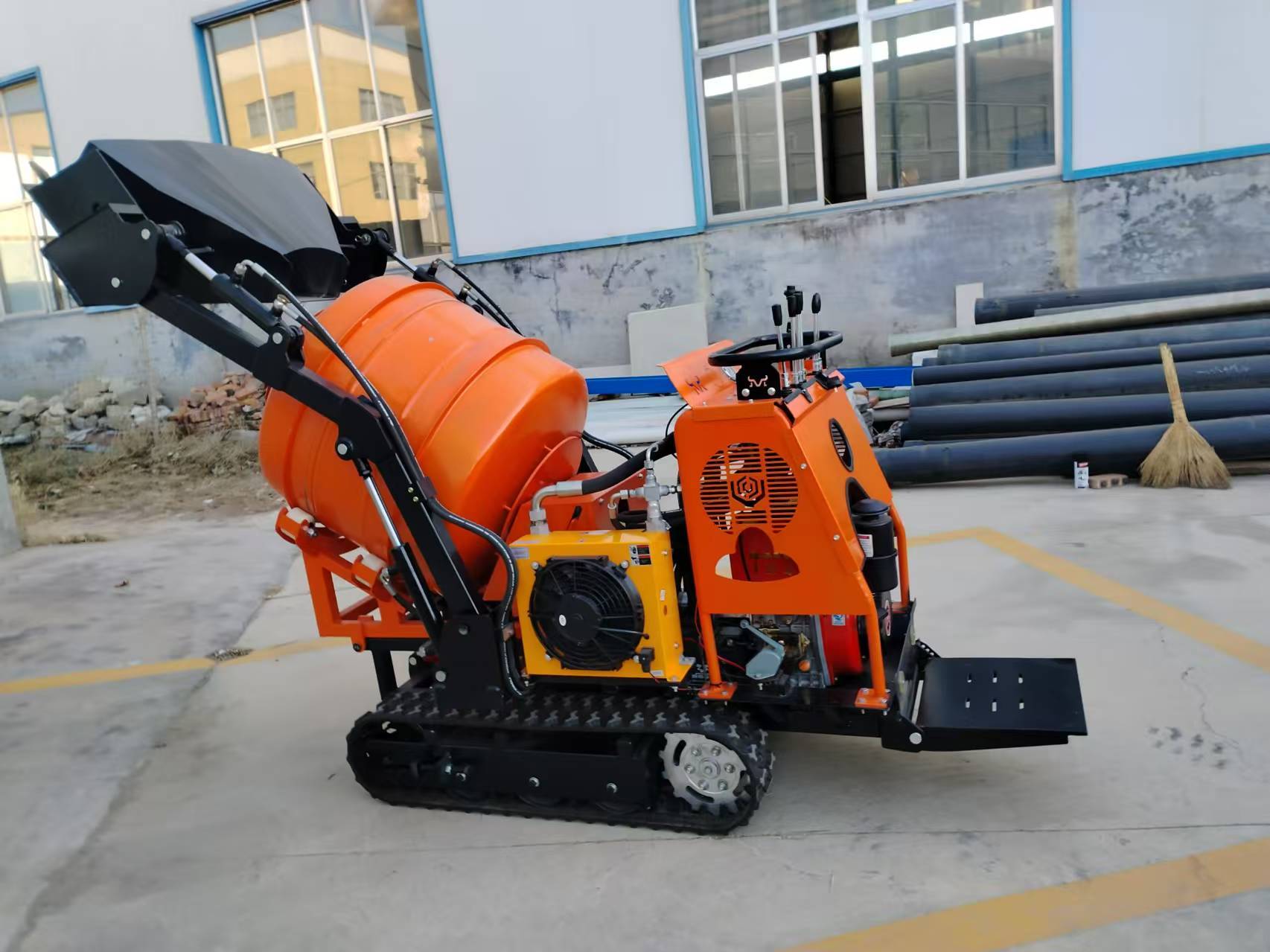

Full Hydraulic Mini Crawler Concrete Mixer
Advantages of Mini Concrete Mixer:
Advantages in Power and Maneuverability
• Full Hydraulic Drive: Power is transmitted directly via hydraulic pumps and motors without mechanical transmission components, making power distribution more flexible.
Advantages in Passability and Adaptability
• Low Ground Pressure: The large contact area of the tracks results in low ground pressure. It is less likely to sink in soft, muddy, sandy, or snowy terrain, offering much better passability than wheeled loaders.
• Strong Hill-Climbing Ability: The tracks provide a strong grip, enabling it to handle steep slopes.
Advantages in Structural Simplification and Maintenance Convenience
• Simplified Transmission System: The traditional mechanical transmission box and drive axle are eliminated, reducing wear-prone parts(such as clutches and gears)and lowering the failure rate.
• Long Lifespan: Tracks typically have a longer lifespan than tires, especially in environments with gravel and high temperatures, where they are more wear-resistant, reducing long-term replacement costs.
Product Specification:
Engine | Koop178 diesel engine,5.5HP 4-stroke air cooler |
System | Full hydraulic |
Unloading ways | Hydraulic |
Shovel volume | 0.11m³ |
Hydraulic pump | Series gear pump(4ccX2) 3600RPM |
Working pressure | Max 180bar |
Flow rate | 8.0L |
Motor torque | 645Nm 180bar |
Feeding volume of mixer | ≤380L |
Discharge volume of mixer | ≤280L |
Output capacity/H | ≤1120L |
Mixer size | Φ760*880 |
Overall size | 2550×1120×1650mm |
Weight | 720KG |
Rubber crawler size | 150*60*44 |
Touch length of rubber crawler | 900mm |
Walking speed | 0-8KM |
Ability to cross obstacles | Max 40° on slope vertical height200mm
|
Wading depth | 350mm |
Package size | Plywood case：2100×1080×1600mm |
OUR FACTOYR
Tai'an Oubosen Machinery Co., Ltd. was established in 2015 and is a high-tech enterprise that integrates research and development, production, sales, and service. The company has a modern production base and advanced production equipment; Having multiple professional technical personnel provides strong support for the continuous updating and quality improvement of the company's products.
INVENTORY
The company is mainly committed to the research and development, production, and sales of engineering machinery, agricultural machinery, construction machinery, and environmental protection machinery; The main products include small excavators, mini track transport vehicles, self loading small track mixer trucks, slip machines, football field grass planters, remote-controlled solar powered installation elevators, remote-controlled electric lawn mowers, self-propelled lawn mowers, and other products.
EQUIPMENT
Customer visits
COMMON PROBLEM
Can we provide drawings or prototypes for you to develop and promise exclusive sales?
We accept customization with drawings or samples to achieve true co-development, and promise to adhere to targeted sales of customized products.
What other additional services will we offer?
Professional advertising videos. We have our own photographers and video editors to offer you professional customized advertising videos.
We have our own graphic design team that can provide you with professional high-definition images for your advertisement.
We have a large professional technical team, and we will designate one engineer and salesman to help you improve sales and after-sales efficiency.
