350L Mini Fully Automatic Self Loading Cement Concrete Mixer
Category:
Concrete mixer-full hydraulic
Chat with us now for a quick response.
Get expert sales advice within 12 hours.
Keyword:
350L Mini Fully Automatic Self Loading Cement Concrete Mixer
PRODUCT DETAILS

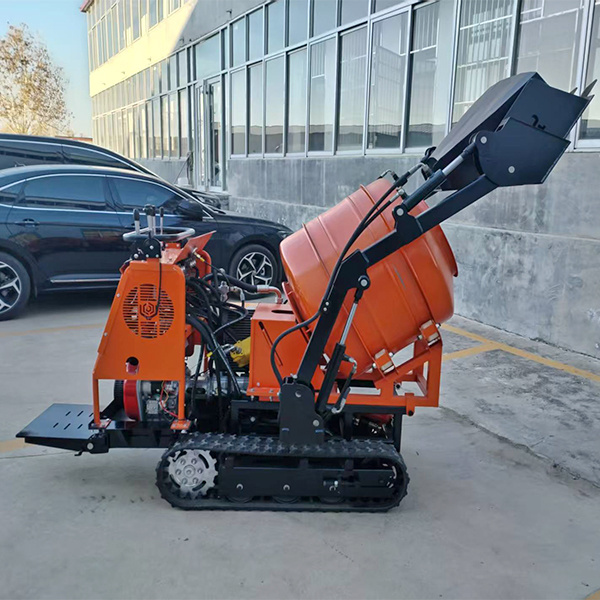

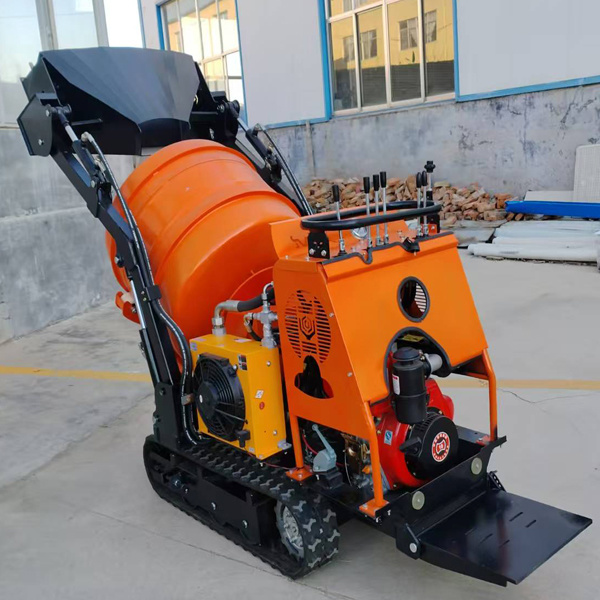

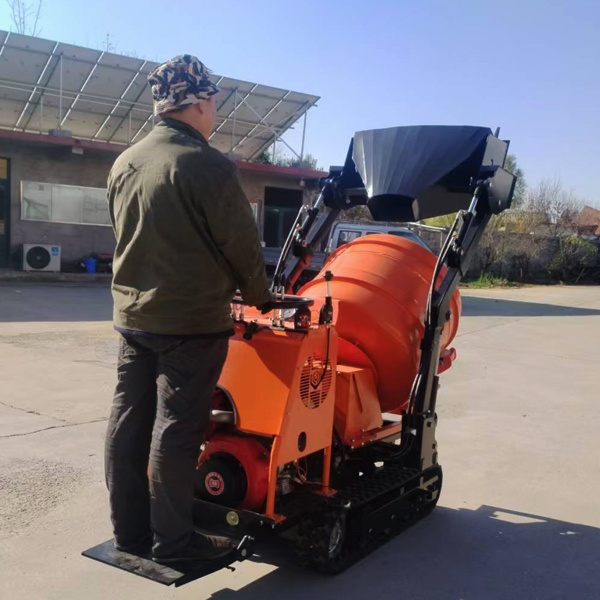

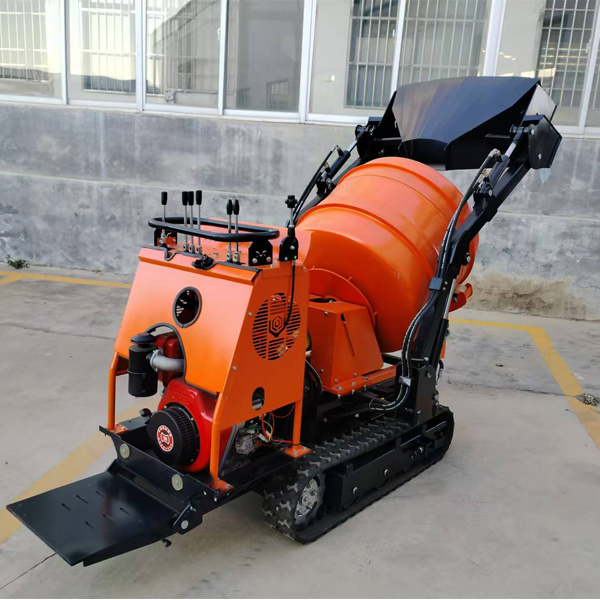

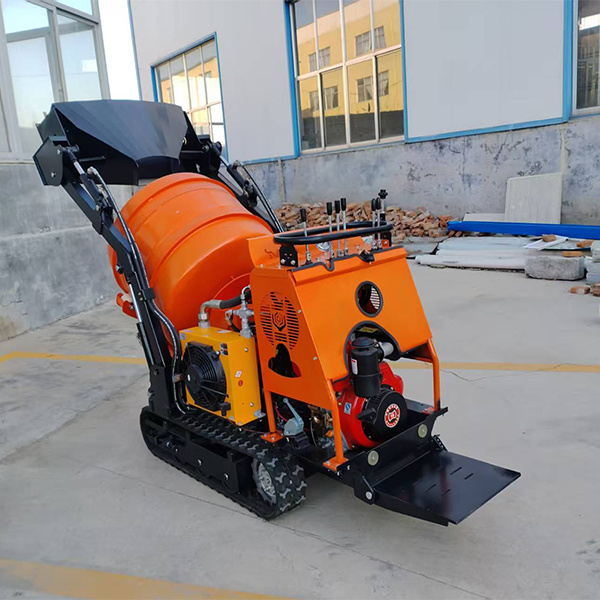

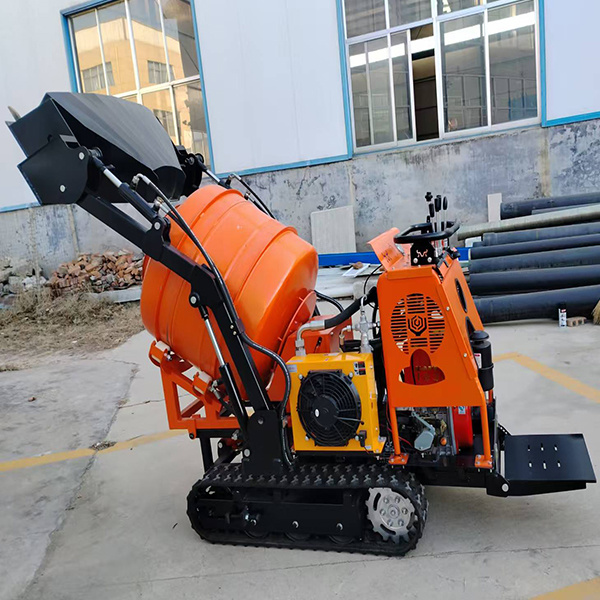

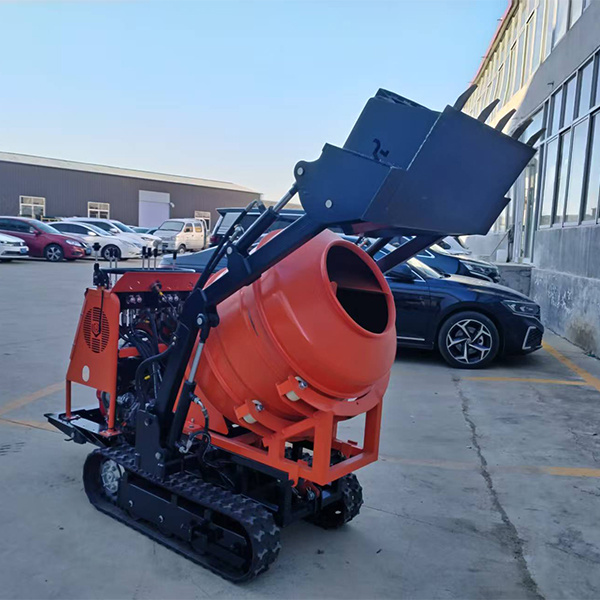

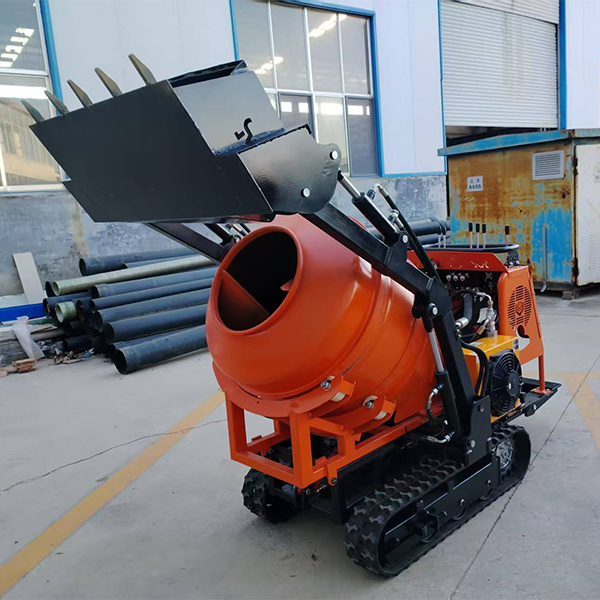

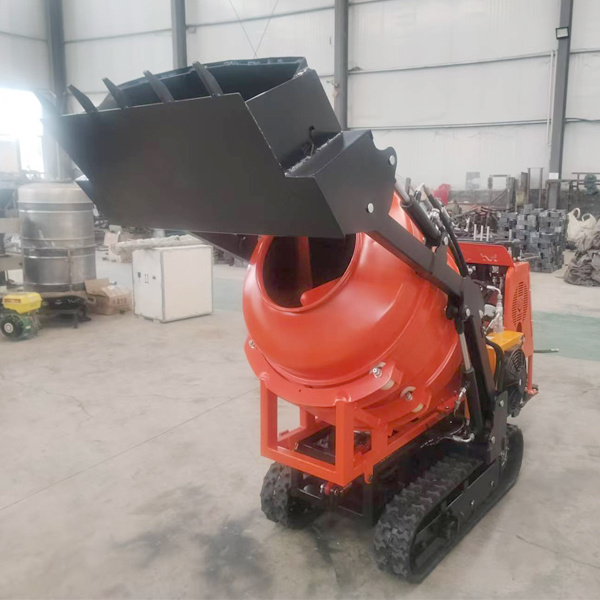

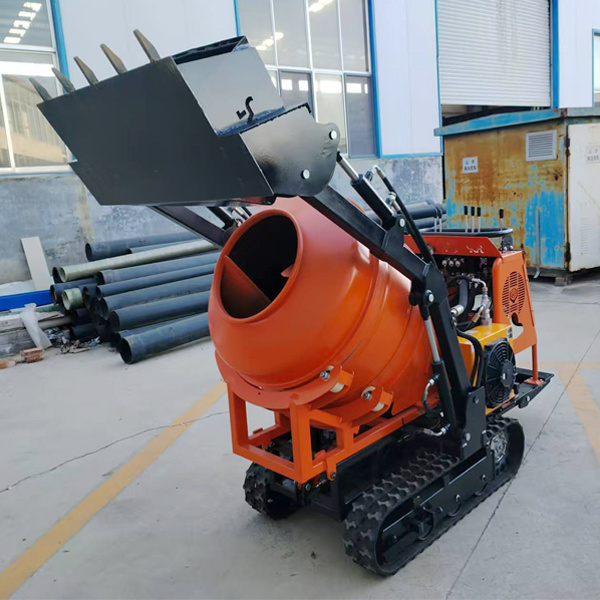

350L Mini Fully Automatic Self Loading Cement Concrete Mixer
The 350L fully hydraulic mixer is a high-efficiency, multifunctional concrete mixing equipment suitable for construction sites, road construction, and other scenarios. Its fully hydraulic drive system ensures high performance and reliability of the equipment.
1. Main Features
Fully Hydraulic Drive: Utilizes a hydraulic system, providing strong power, smooth operation, and low noise.
Large Mixing Capacity: With a 350L mixing capacity, it meets the needs of small to medium-sized projects.
High-Efficiency Mixing: Optimized design ensures high mixing efficiency and good concrete uniformity.
Easy Operation: User-friendly design, simple to operate, and easy to maintain.
Flexible Mobility: Equipped with moving wheels for easy transportation and positioning on and off the construction site.
2 . Technical Parameters
| No. | Model/parameter | OBSJB-350L |
| 1 | Engine | Koop178,5.5HP,air cooler,Eurp.5 |
| 2 | Loading and unloading | Hydraulic system |
| 3 | Shovel volume | 0.11m3 |
| 4 | Hydraulic pump | Series gear pump (4ccx2) 3600RPM |
| 5 | Working pressure | Max.180bar |
| 6 | Flow rate | 8.0L |
| 7 | Motor torque | 645NM 180bar |
| 8 | Feeding volume of mixer | <=380L |
| 9 | Discharge volume of mixer | <=280L |
| 10 | Output capacity/H | <=1120L |
| 11 | Mixer size | Ø760x850 |
| 12 | Rubber crawler size | 150x60x44 |
| 13 | Touch length of rubber crawler | 900mm |
| 14 | Speed | 0-8KM |
| 15 | Ability to cross obstacles | Max.40° vertical height200mm |
| 16 | Wading depth | 350mm |
| 17 | N.W/G.W | 600/650kg |
| 18 | Package size | 2100x1080x1600mm |
3.Application Fields
Construction Engineering: Suitable for concrete construction in buildings, bridges, etc.
Road Construction: Used for road surface paving and repair.
Prefabricated Component Production: Ideal for the production of prefabricated concrete components.
4. Maintenance
Regular Inspection: Regularly check key components such as the hydraulic system and mixing blades.
Lubrication Maintenance: Lubricate moving parts on time to reduce wear.
Equipment Cleaning: Clean the equipment promptly after use to prevent concrete from solidifying and affecting performance.
Summary
The 350L fully hydraulic mixer, with its high efficiency and reliability, is widely used in various concrete construction projects, making it an ideal choice for construction sites.

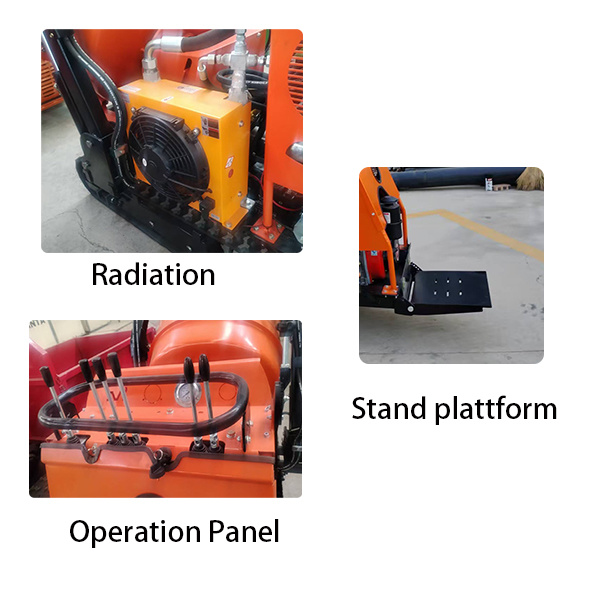

Detail:
We aim to become a reliable manufacturer.Welcome your order!!!!!!!
OUR FACTOYR
Tai'an Oubosen Machinery Co., Ltd. was established in 2015 and is a high-tech enterprise that integrates research and development, production, sales, and service. The company has a modern production base and advanced production equipment; Having multiple professional technical personnel provides strong support for the continuous updating and quality improvement of the company's products.
INVENTORY
The company is mainly committed to the research and development, production, and sales of engineering machinery, agricultural machinery, construction machinery, and environmental protection machinery; The main products include small excavators, mini track transport vehicles, self loading small track mixer trucks, slip machines, football field grass planters, remote-controlled solar powered installation elevators, remote-controlled electric lawn mowers, self-propelled lawn mowers, and other products.
EQUIPMENT
Customer visits
COMMON PROBLEM
Can we provide drawings or prototypes for you to develop and promise exclusive sales?
We accept customization with drawings or samples to achieve true co-development, and promise to adhere to targeted sales of customized products.
What other additional services will we offer?
Professional advertising videos. We have our own photographers and video editors to offer you professional customized advertising videos.
We have our own graphic design team that can provide you with professional high-definition images for your advertisement.
We have a large professional technical team, and we will designate one engineer and salesman to help you improve sales and after-sales efficiency.
