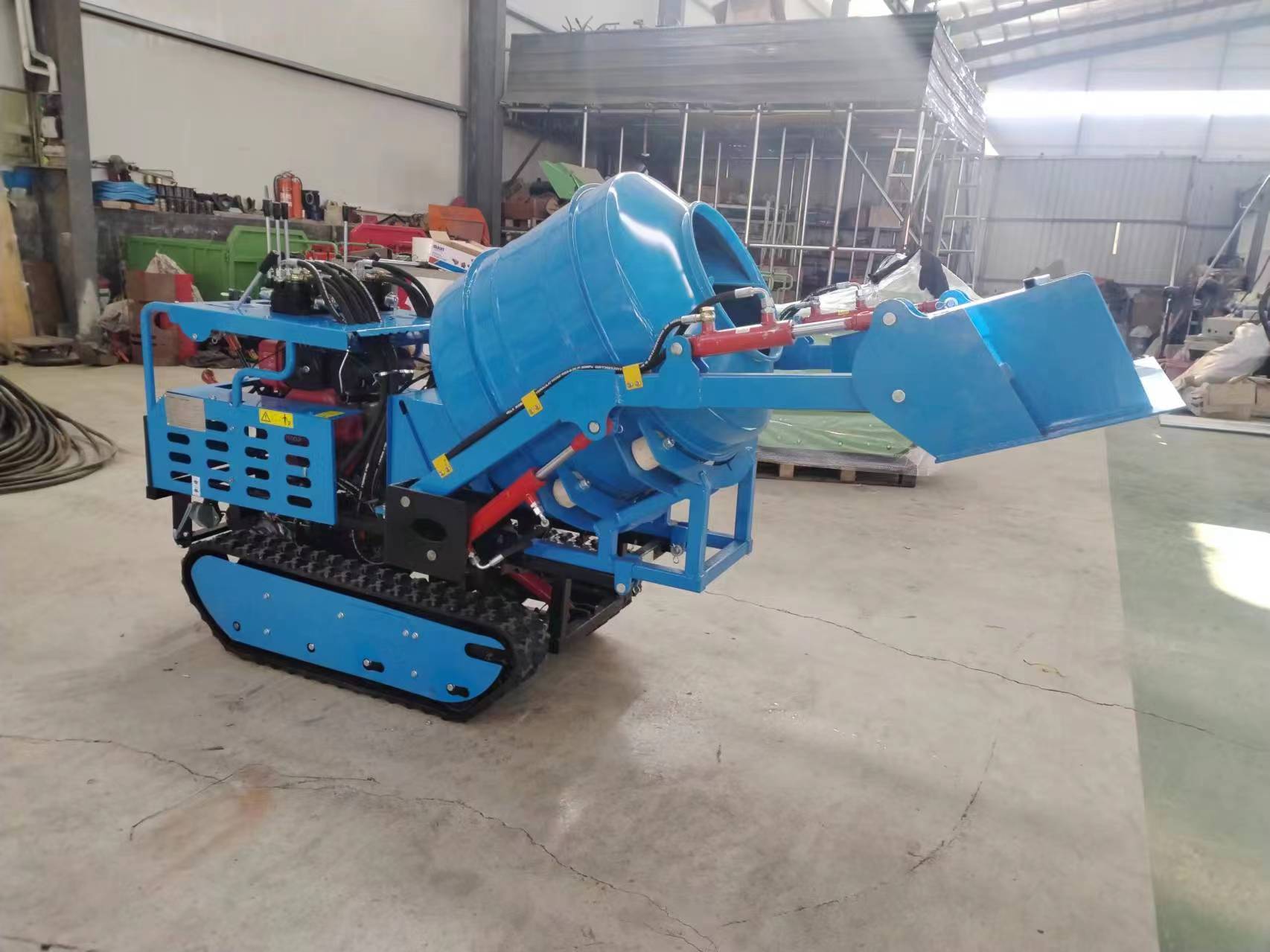

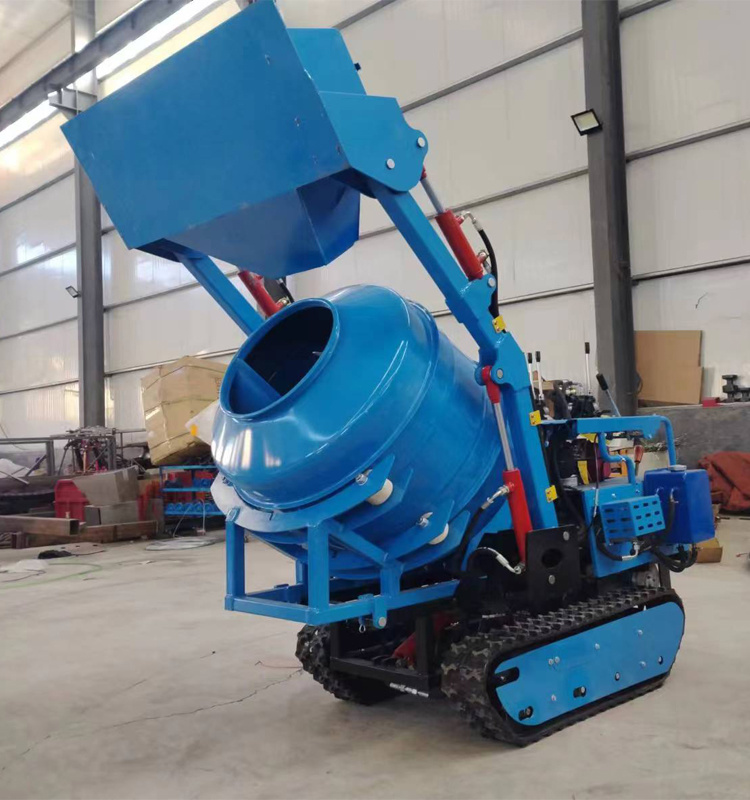

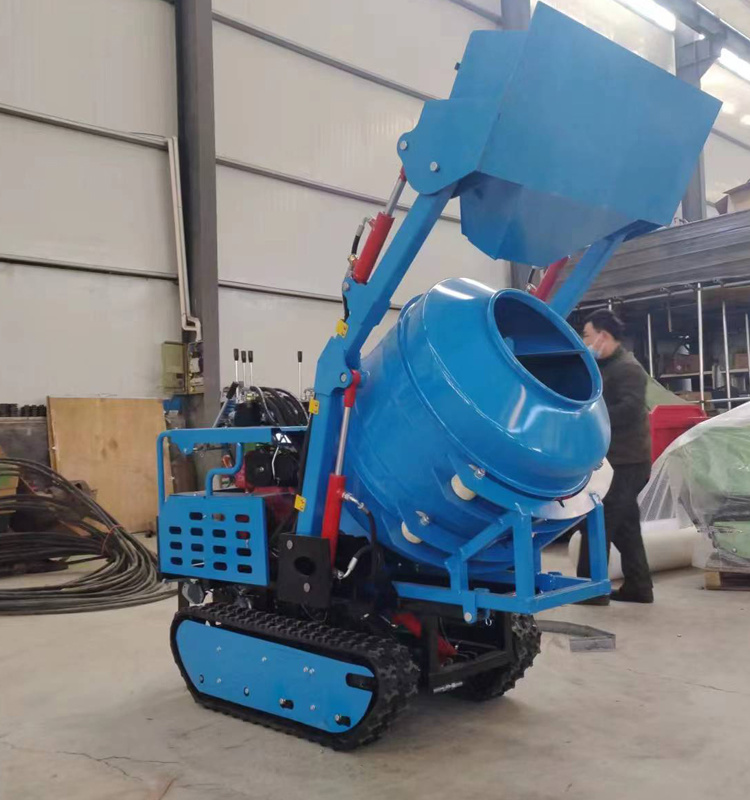

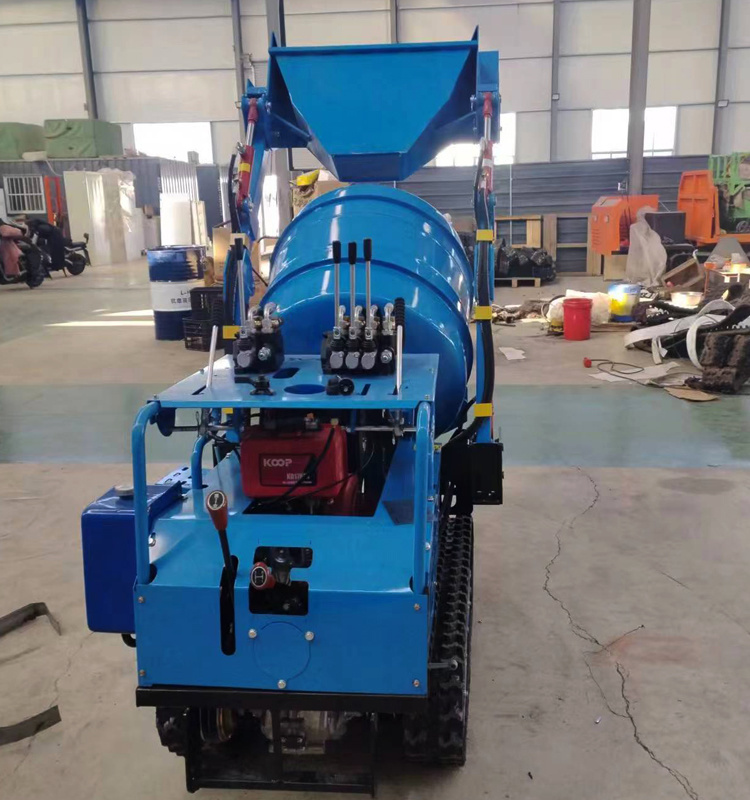

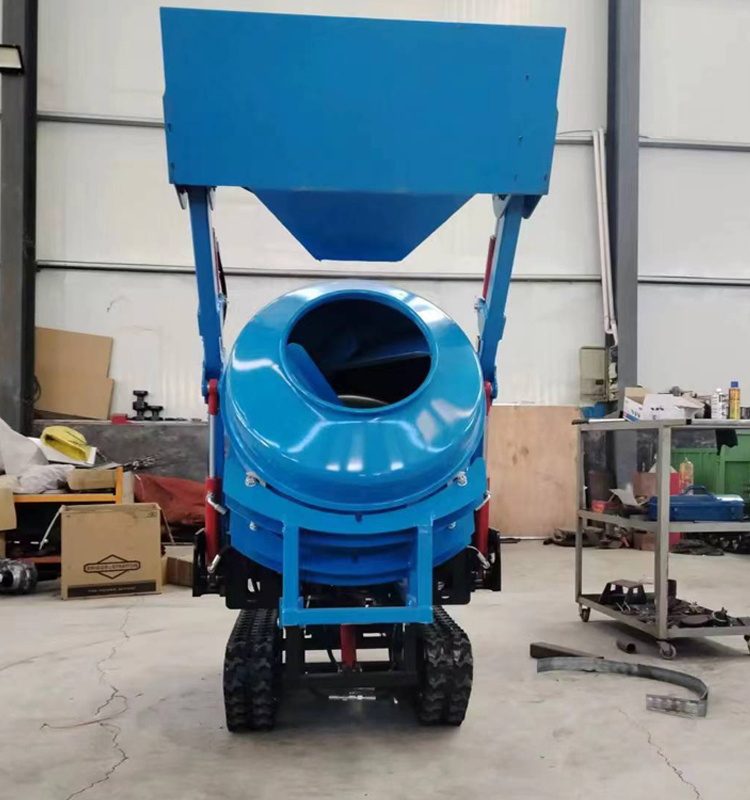

350L Self-loading Mini Crawler Concrete Mixer Automatic Loading
Category:
Concrete mixer-gearbox
Chat with us now for a quick response.
Get expert sales advice within 12 hours.
Keyword:
350L Self-loading Mini Crawler Concrete Mixer Automatic Loading
PRODUCT DETAILS

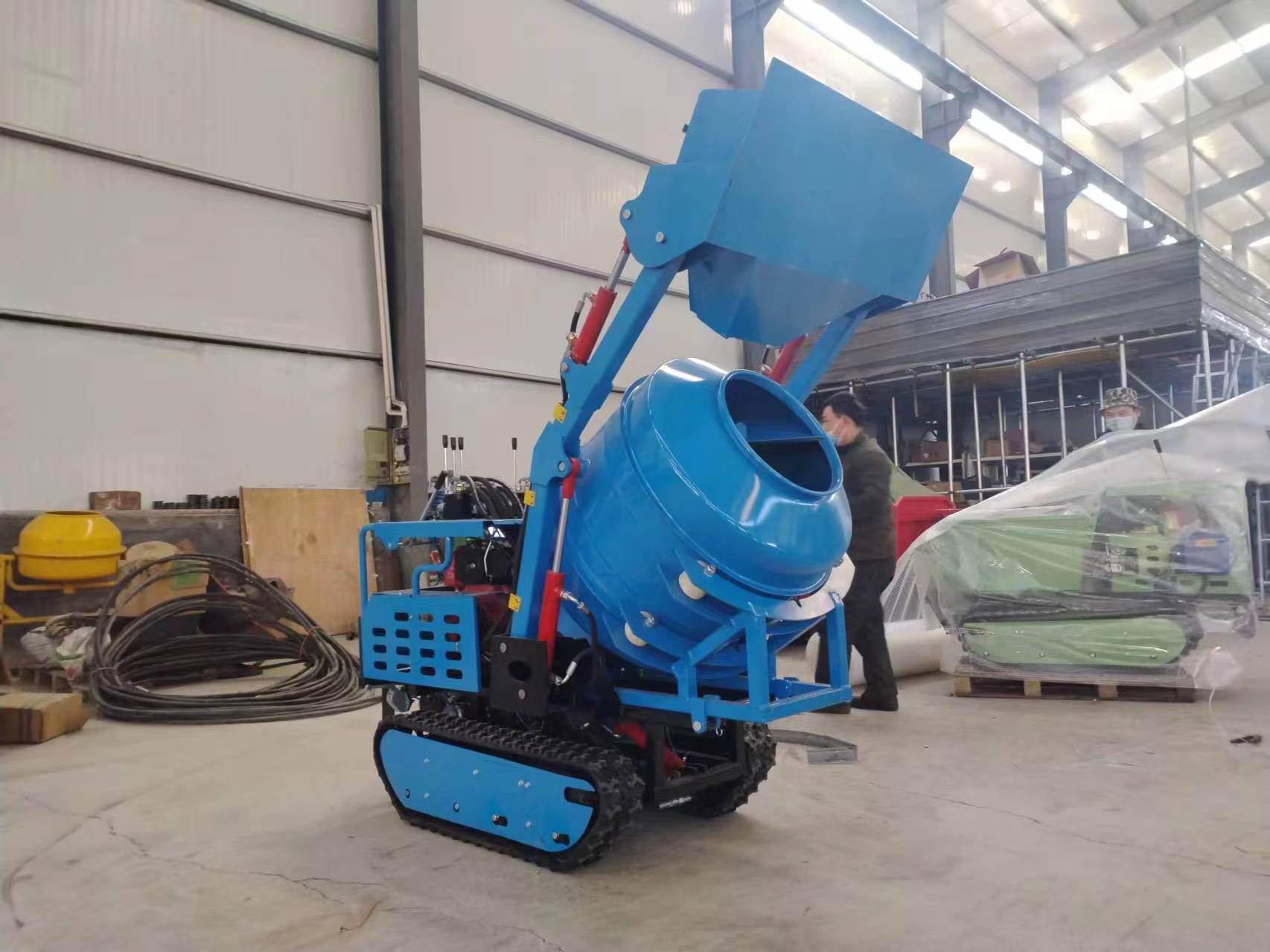

Mini Crawler Mixer
Product Advantages:
Mobility and Flexibility
• Adaptability: Tracked structure allows easy movement over complex terrains like muddy, rugged,or uneven sites(mountainous areas, farmlands, tunnels) without worrying about road conditions.
• Mobility: Can move freely around the construction site, reducing the need for frequent disassembly and reassembly, saving time and labor.
Mixing Performance
• Uniform Mixing: Uses vertical flat-mouth mixing methods and scientifically designed arms to thoroughly mix cement, sand, and water, producing uniform and delicate concrete without graininess.
• Versatility: Can mix ordinary concrete,dry-hard concrete, and viscous substances, making it widely applicable.
Efficiency and Cost
• High Efficiency: Capable of continuous mixing and long working periods, reducing downtime for material loading and increasing construction efficiency.
• Cost-saving: Reduces labor for material handling and equipment disassembly/assembly, lowering labor costs.
Operation and Maintenance
• Easy Operation: Equipped with remote control functions or simple buttons, making it easy for beginners.
• Convenient Maintenance: Some models have high-strength steel mixing drums and blades, which are wear-resistant and reduce repair frequency.
Product Specification:
Engine | Changchai 178 diesel engine,4-stroken,5.5HP,air cooler |
Gearbox | GL-10 Gear：3F+1R |

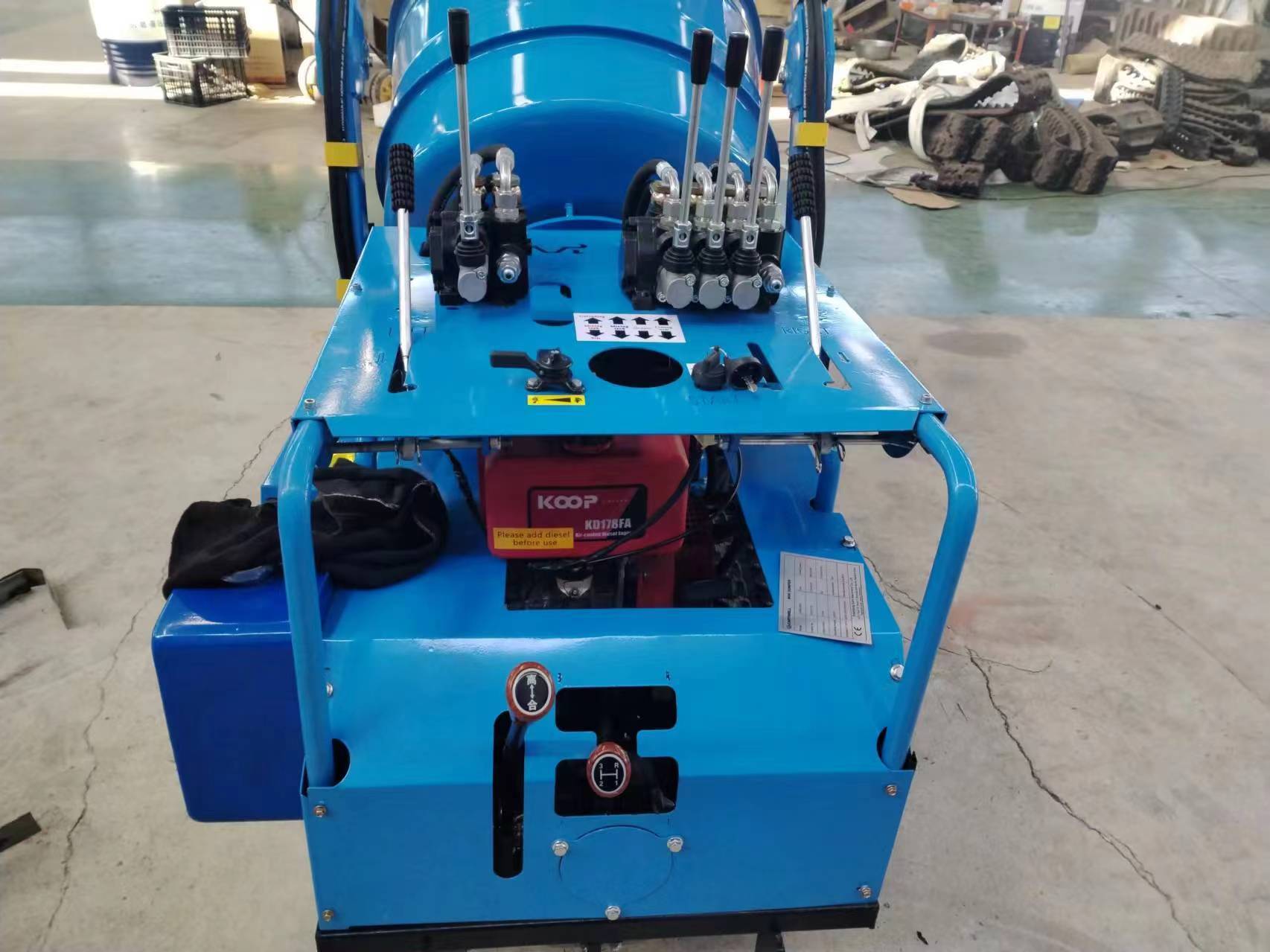

Operation ways | Manual Lever |
Unloading ways | Hydraulic |
Capacity of Shovel | 0.08m³ |
Feeding capacity | ≥450L |
Discharge capacity | ≤300L |
Weight of mixer | ≤500KG |
Size of drum | Φ760*820 or Φ660*920 |
Overall size | 2500×1080×1500mm |
Net weight/Gross weight | 580KG/650KG |

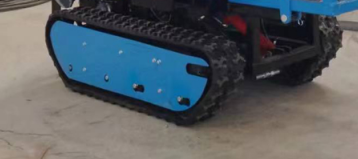

Rubber crawler size | 150x60x44 |
Rubber crawler touching length | 900mm |
Walking speed | 2-8KM |
Obstacle ability | Max.30° Vertical 200mm |
Wading depth | 300mm |
Package size(one set) | 2070x1100x1600mm(Plywood case) |
Product Details:
OUR FACTOYR
Tai'an Oubosen Machinery Co., Ltd. was established in 2015 and is a high-tech enterprise that integrates research and development, production, sales, and service. The company has a modern production base and advanced production equipment; Having multiple professional technical personnel provides strong support for the continuous updating and quality improvement of the company's products.
INVENTORY
The company is mainly committed to the research and development, production, and sales of engineering machinery, agricultural machinery, construction machinery, and environmental protection machinery; The main products include small excavators, mini track transport vehicles, self loading small track mixer trucks, slip machines, football field grass planters, remote-controlled solar powered installation elevators, remote-controlled electric lawn mowers, self-propelled lawn mowers, and other products.
EQUIPMENT
Customer visits
COMMON PROBLEM
Can we provide drawings or prototypes for you to develop and promise exclusive sales?
We accept customization with drawings or samples to achieve true co-development, and promise to adhere to targeted sales of customized products.
What other additional services will we offer?
Professional advertising videos. We have our own photographers and video editors to offer you professional customized advertising videos.
We have our own graphic design team that can provide you with professional high-definition images for your advertisement.
We have a large professional technical team, and we will designate one engineer and salesman to help you improve sales and after-sales efficiency.
